« Ports and floating structures



( AX-000-000 )

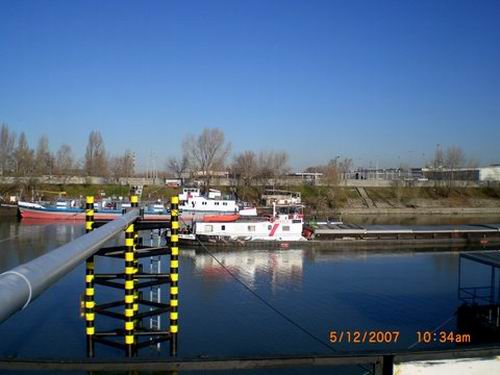

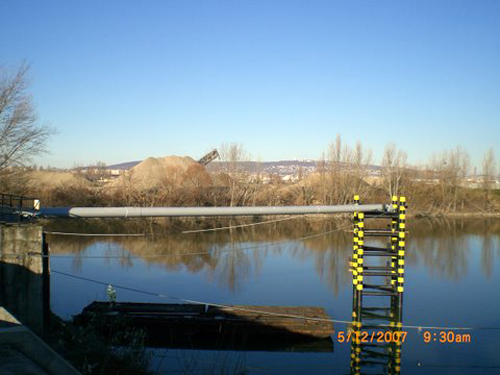

Port name:Csepel Petróleum Kikötő

Project's details:

Project number:AX-000-000

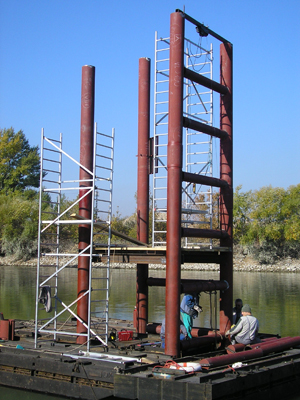

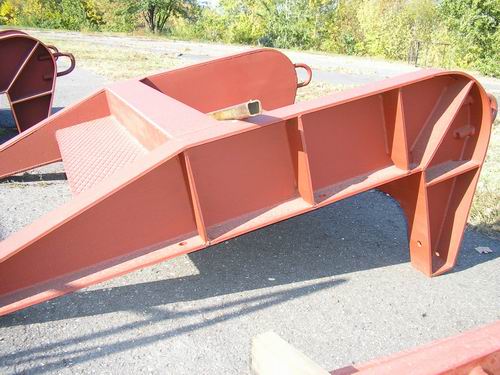

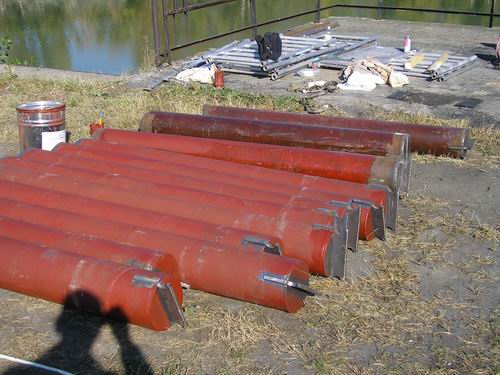

Project name:Kikötővédő Pilonok és tartozékai acélszerkezetének szilárdsági számítása és gyártási tervdokumentációja

Applied rules/registers:

Calculations according to GL

Main features:

Length overall, Lbef [m]14
Ponton/ship breadth, B [m]9,55
Freeboard, f [m]23,5
Maximum displacement, deltamax [t]0,3
Maximal number of crew, n1 [fő]10
Maximal passeger capacity, n [fő]1
Capacity of port, number of ships, n [db]125
Capacity of port, number of boats, ships, n [db]11
Main dimensions of ships, L [m]2,5
Main dimensions of ships, B [m]3000
Main dimensions of ships, Tmax [m]0,9
Maximal allowable displacement, delta [t/egység]24

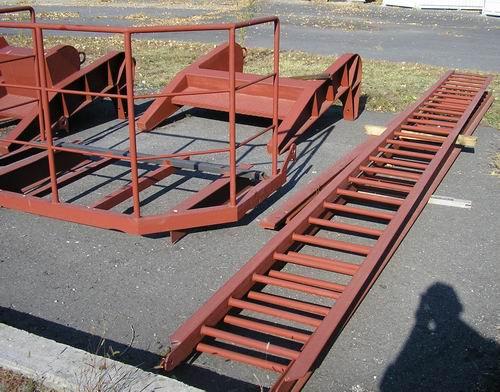

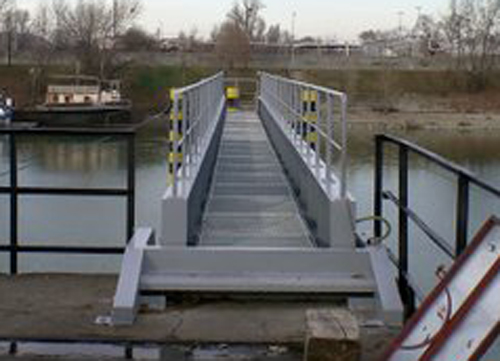

Boarding bridge parameters, effective width [m]5

Ship engineer tasks:

General arranegment, general structure design
Drawings
Strength analysis
Calculation of maximal number of crew and passengers
Constructional documentation and instructions
