« Motor ships


Navigátor 32
( NAV 32-001-00 )

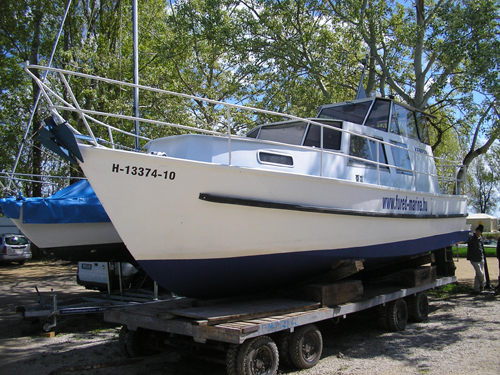

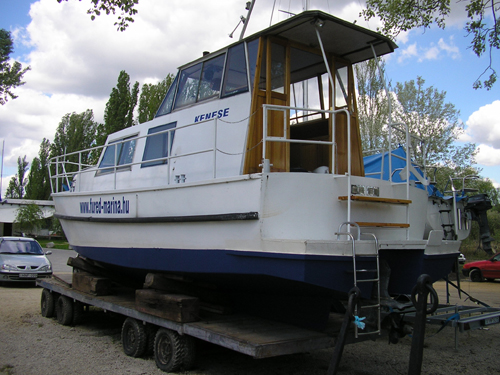

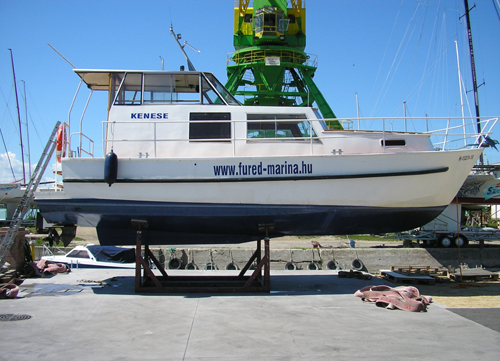

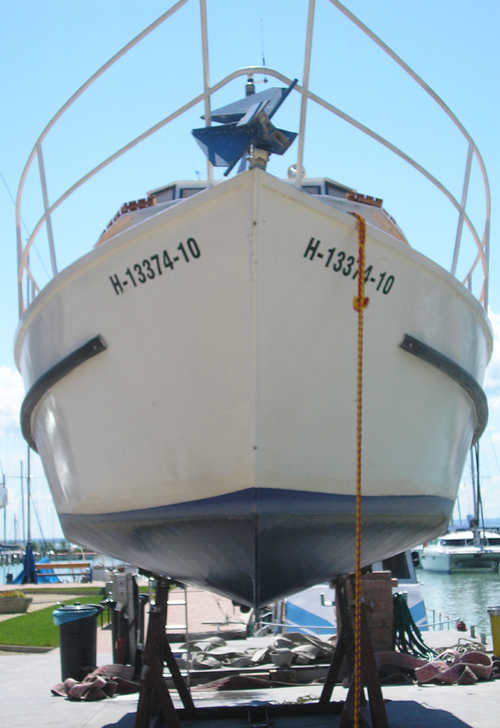

Ship name:Kenese
Ship category:Commercial vessels
Name of class:Navigátor 32

Project's details:

Project number:NAV 32-001-00
Project name:Közforgalmú személyszállító kishajó stabilitásának vizsgálata

Main features:

Length overall, Lbef [m]10,59
Maximum length, Lmax1 [m]9,82
Maximum length of hull, Lmax2 [m]9,82
Waterline length, Lwl [m]8,7
Maximum breadth with fender rail, Bmax [m]3,175
Breadth of hull, b [m]3,1
Waterline breadth, Bwl [m]2,77
Depth, D [m]1,53
Freeboard, f [m]0,79
Airdraft from baseline, Hfix [m]4,6
Lightship, delta0 [t]5,918
Deadweigth, deltamax [t]6,758
Maximum hull draugth, Th [m]0,62
Maximum draugth, T [m]0,98
Service speed with machinery, v [kts]20
Crew, n11
Maximum passenger capacity, n2 [fő]3
Maximum load [kg]300
Type of main engineVOLVO PENTA AD41P-A
Character of main enginediesel
Continuous service raing [LE]1x200

Ship engineer tasks:

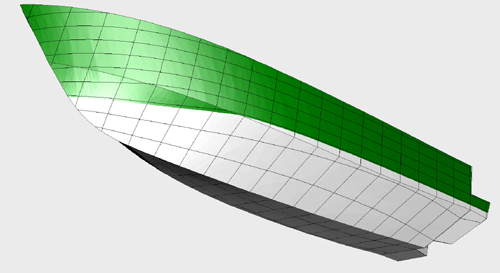

Calculation of hydrostatics
Inclining experiment documentation
