Gravel production with bucket-ladder
( IG-000-000 )

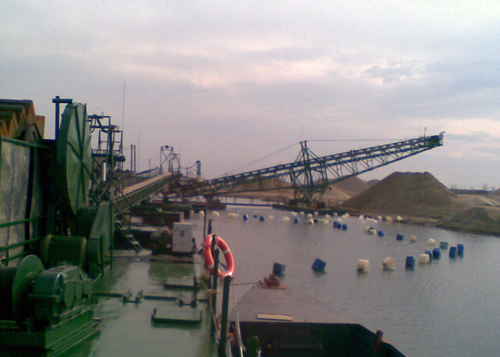

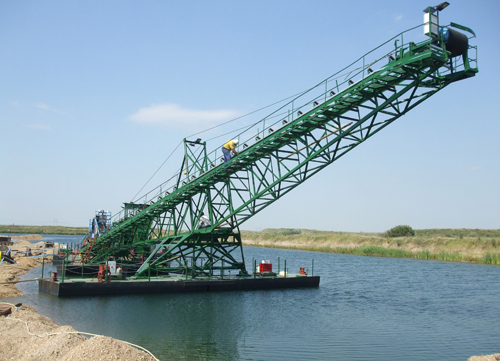

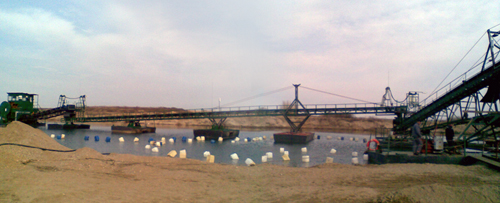

Name of floating machine:IGRICI 150 t/h bucket-ladder dredger

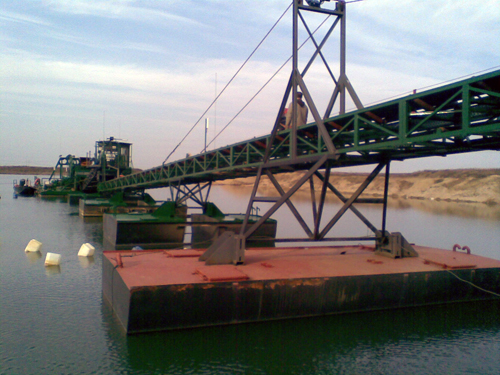

Floating machine category:Floating belt conveyor for dredger
Type of purpose:Gravel production with bucket-ladder

Project's details:

Project number:IG-000-000
Project name:Technical description and reconstructional project documentation of IGRICI 150 t/h bucket-ladder dredger

Applied rules/registers:

Belvízi hajók, úszó kikötőhelyek, követelmények, vizsgálatok (MSZ EN 14504)
A belvízi utakon közlekedő úszólétesítmények hajózásra alkalmassága és megfelelősége feltételeiről, az úszóképesség vizsgálatáról és tanúsításáról szóló 13/2001. (IV.10.) KöViM rendelet.

Main features:

Length overall with dredger and lifted dredging ladder, Lbef [m]97,84
Maximum length, Lmax1 [m]94,34
Maximum conveyor length, Lmax3 [3]75,84
Maximum breadth, Bmax [m]14,62
Pontoon breadth, B [m]14,62
Waterline breadth, Bcw1 [m]14,62
Depth, D [m]1,066
Freeboard, f [m]0,45
Airdraft from baseline, Hfix [m]9,75
Lightship of floating machine with bucket-ladder dredger, delta 0 [t]102,5
Maximum displacement with bucket-ladder dredger, delta maxv [t]122,6
Maximum displacement (with gravel piling), delta max [t]53,9
Lightship of floating belt conveyor [t]47,5
Maximum pontoon draugth, Th [m]0,602
Dredging, conveying mass flow [t/h]150
Crew, n1 [fő]2

Ship engineer tasks:

Technical description

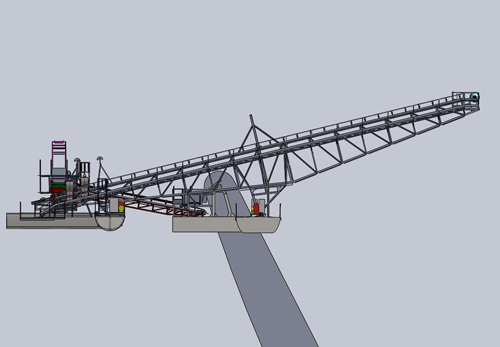

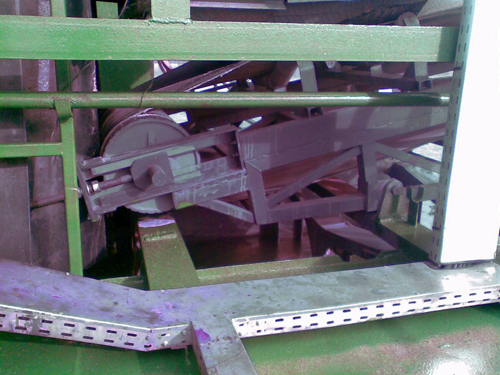

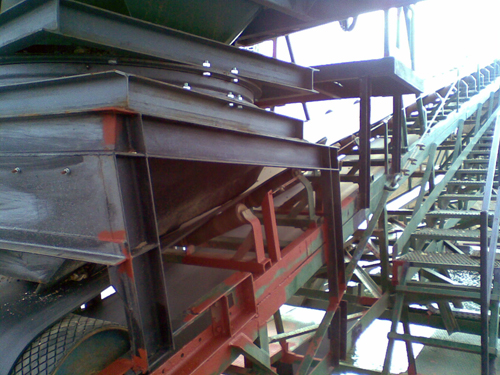

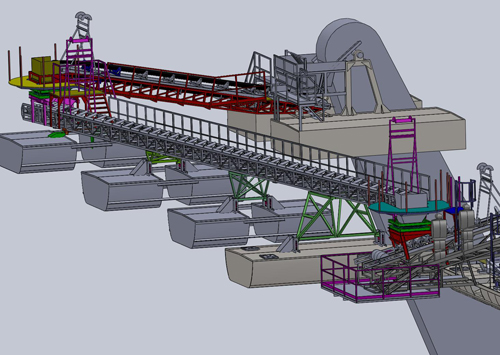

General arrangement, general structure design
Technical description of electrics

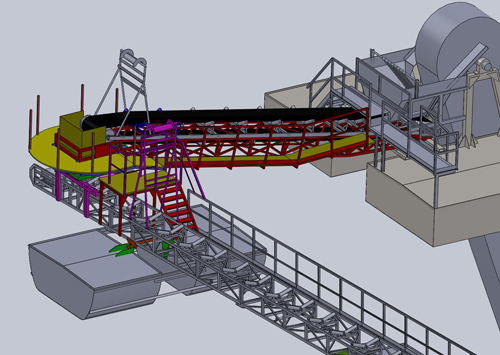

Drawings

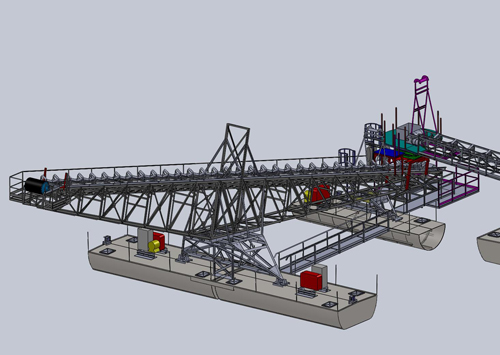

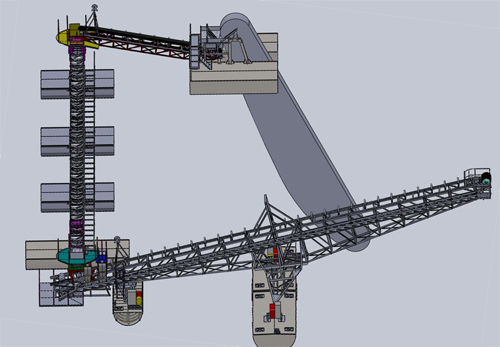

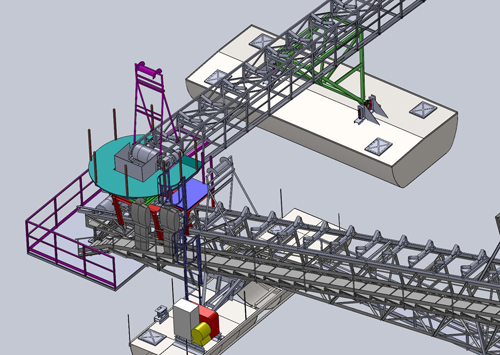

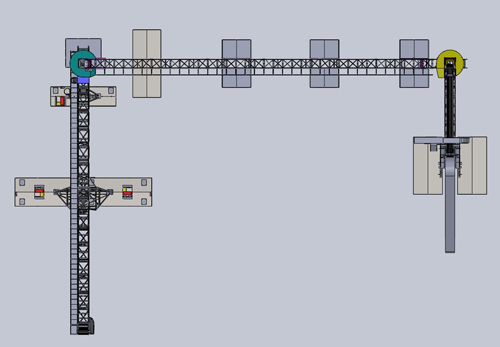

General arrangement of floating structures

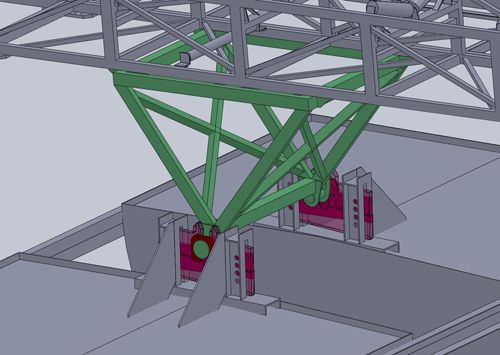

General structural design
Detail calculations according to 13/2001. / II. / 17. regulation
Calculation of hydrostatics
Weight and stability calculation
Buoyancy and stabilty check
Subdivision and damage stability calculations
Strength analysis
Electrical load calculation, electric networks, emergency lighting, lightning protection
Arrangement of fire-protecting equipments
Fire safety instructions
Arrangement of equipments and lifesaving means
Operational guide
Constructional documentation and instructions
Plate development and cutting plan

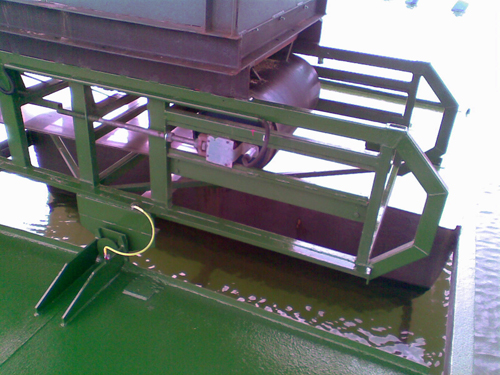

Supervision of construction and repair
