« Ports and floating structures



( BUD-000-000 )

Port name:Budafok Floating Port for Small Crafts

Project's details:

Project number:BUD-000-000
Project name:Design modification of a port for small crafts at the Danube's section 1636,94 km on the right riverside

Applied rules/registers:

Nautical Regulations
Regulations of public supply application
Technical supervisory regulations for inland ships
Belvízi hajók, úszó kikötőhelyek, követelmények, vizsgálatok (MSZ EN 14504)
A belvízi utakon közlekedő úszólétesítmények hajózásra alkalmassága és megfelelősége feltételeiről, az úszóképesség vizsgálatáról és tanúsításáról szóló 13/2001. (IV.10.) KöViM rendelet.

Main features:

Length overall, Lbef [m]108
Maximum length of ship/pontoon structure, Lmax2 [m]52,134
Ponton/ship breadth, B [m]3,3
Depth, D [m]1,29
Lightship, delta0 [t]53,12
Maximum displacement, deltamax [t]61,64
Maximum pontoon/ship draugth, Th [m]0,4
Maximal number of crew, n1 [fő]2
Maximal passeger capacity, n [fő]80
Capacity of port, number of boats, ships, n [db]2 of 15 t displacement small craft, 6 of 4t displacement small craft, 12 of 1t displacement small craft
Main dimensions of ships, L [m]15
Main dimensions of ships, B [m]4,5

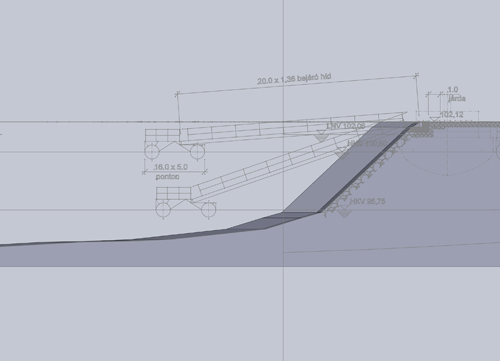

Boarding bridge parameters, effective width [m]1,36
Boarding bridge parameters, span of bridge [m]20
Boarding bridge parameters, design load [kN/m2]5

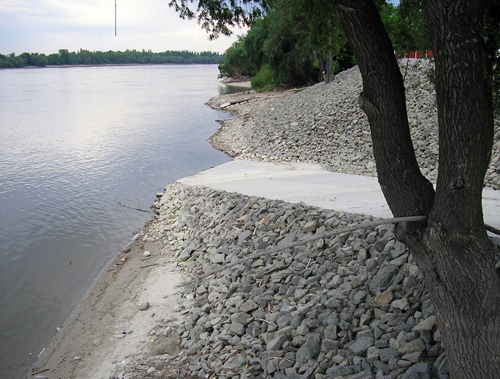

Layout distance from the edge of the shore BTK [m]20
Shallow depth TG [m]1,45
Minimal operating waterlevel LÜVmin [mBf]95,75
Maximal operating waterlevel LÜVmax [mBf]100,6
Minimal emergency waterlevel LKHV [mBf]94,7

Ship engineer tasks:

Technical description
Drawings

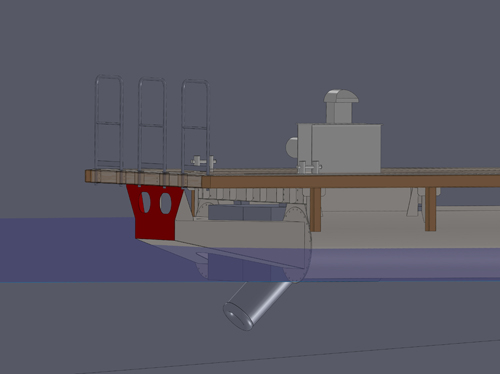

General arrangement of floating structures

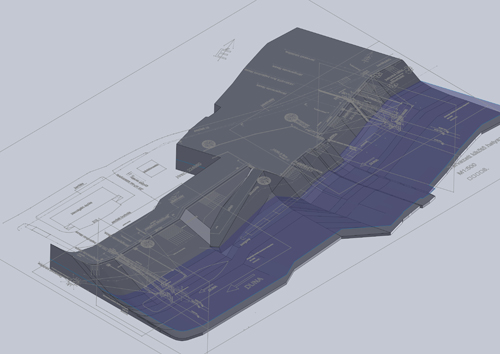

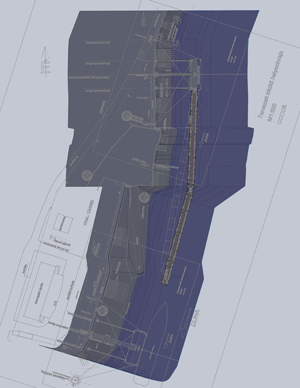

Layout arrangement
General structural design
Calculation of hydrostatics
Weight and stability calculation
Buoyancy and stabilty check
Subdivision and damage stability calculations
Strength analysis
Electrical load calculation, electric networks, emergency lighting, lightning protection
Arrangement of equipments and lifesaving means
Operational guide
