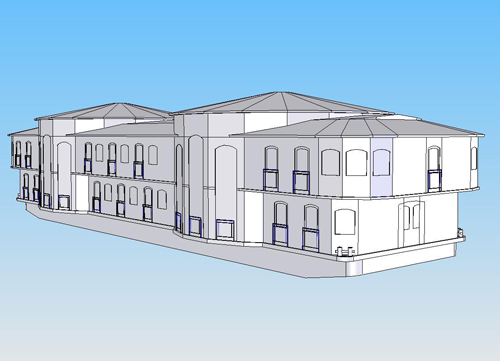

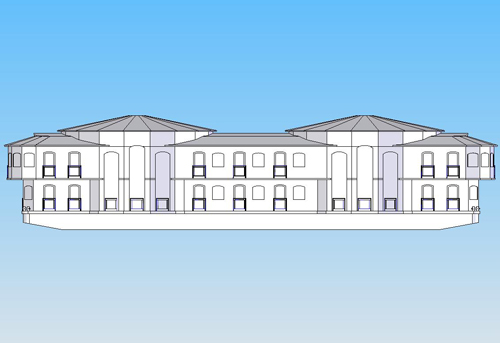

Floatel
( USZV-000-000 )

Port name:Gyöngyház
Floating structure category:Pontoon (commercial)
Type of purpose:Floatel

Project's details:

Project number:USZV-000-000
Project name:Approval project documentation of Ex Gyöngyház floatel

Applied rules/registers:

Technical supervisory regulations for inland ships
A belvízi utakon közlekedő úszólétesítmények hajózásra alkalmassága és megfelelősége feltételeiről, az úszóképesség vizsgálatáról és tanúsításáról szóló 13/2001. (IV.10.) KöViM rendelet.

Main features:

Length overall, Lbef [m]39
Maximum length, Lmax1 [m]39
Maximum length of ship/pontoon structure, Lmax2 [m]36
Waterline length, Lcw1 [m]36
Maximum length with fender rail, Bmax [m]12,43
Ponton/ship breadth, B [m]9
Waterline breadth, Bcw [m]8,9
Depth, D [m]1,275
Freeboard, f [m]0,625
Airdraft from baseline, Hfix [m]10,44
Lightship, delta0 [t]186,5
Maximum displacement, deltamax [t]196,5
Maximum pontoon/ship draugth, Th [m]0,67
Maximal passeger capacity, n [fő]106

Ship engineer tasks:

Technical description

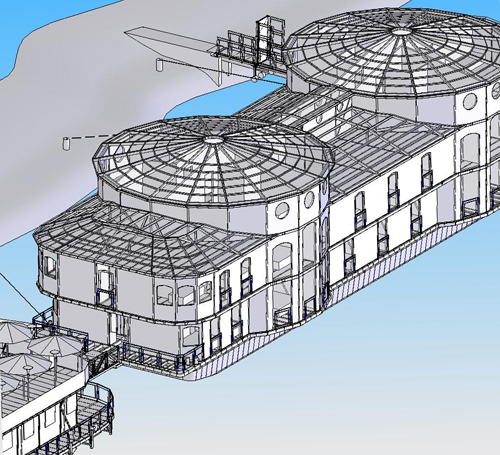

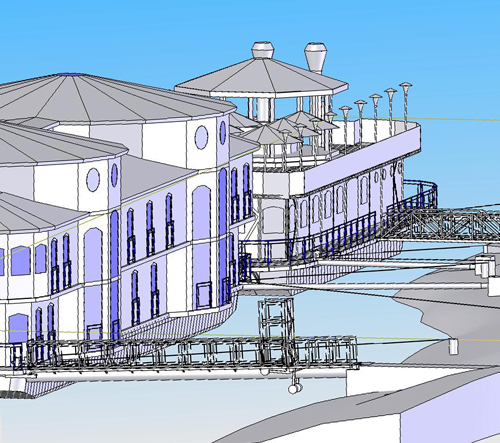

General arranegment, general structure design
Calculation of hydrostatics
Buoyancy and stabilty check
Subdivision and damage stability calculations
Strength analysis
Electrical load calculation, electric networks, emergency lighting, lightning protection
Domestic and fire water system
Design of heating system
Airconditioning arrangement
Blackwater system, blackwater unloading plan
Fire-protecting system, escape routes, evacuation analysis, emergency exits
Calculation of maximal number of crew and passengers
Operational guide
Constructional documentation and instructions
