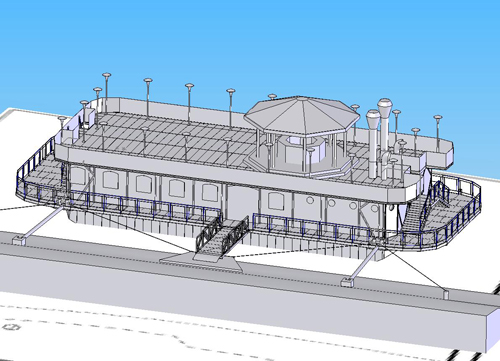

Guesthouse ship
( BK-000-000 )

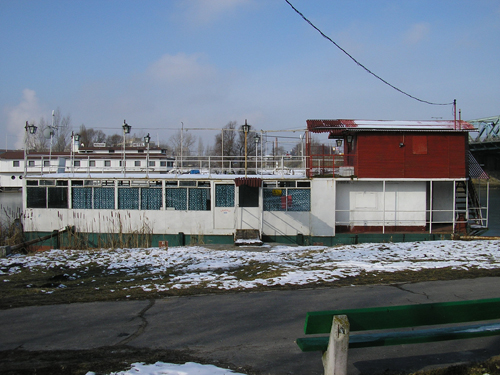

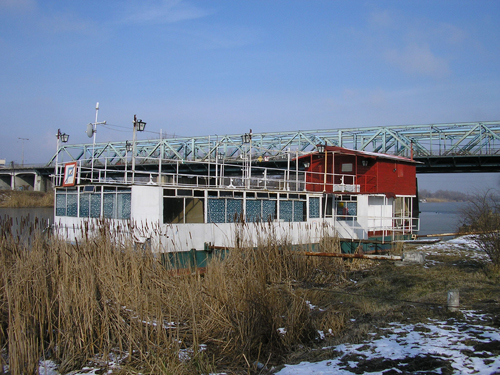

Port name:Ex Budakalász
Floating structure category:Pontoon (commercial)
Type of purpose:Guesthouse ship

Project's details:

Project number:BK-000-000
Project name:Custom approval project documentation of a pontoon with superstructure

Applied rules/registers:

Nautical Regulations
Regulations of public supply application
Technical supervisory regulations for inland ships
A belvízi utakon közlekedő úszólétesítmények hajózásra alkalmassága és megfelelősége feltételeiről, az úszóképesség vizsgálatáról és tanúsításáról szóló 13/2001. (IV.10.) KöViM rendelet.

Main features:

Length overall, Lbef [m]26
Maximum length, Lmax1 [m]26
Maximum length of ship/pontoon structure, Lmax2 [m]20
Waterline length, Lcw1 [m]20
Maximum length with fender rail, Bmax [m]10,4
Ponton/ship breadth, B [m]8
Waterline breadth, Bcw [m]8
Depth, D [m]1,25
Freeboard, f [m]0,635
Airdraft from baseline, Hfix [m]8
Lightship, delta0 [t]86,7
Maximum displacement, deltamax [t]94,2
Maximum pontoon/ship draugth, Th [m]0,615
Maximal passeger capacity, n [fő]100

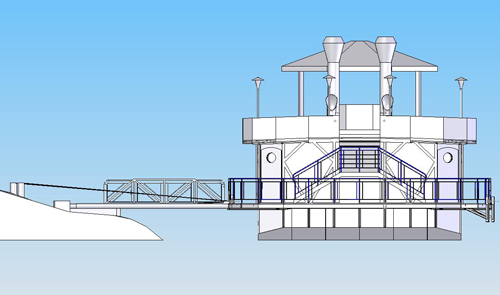

Boarding bridge parameters, effective width [m]1,6
Boarding bridge parameters, span of bridge [m]4,8

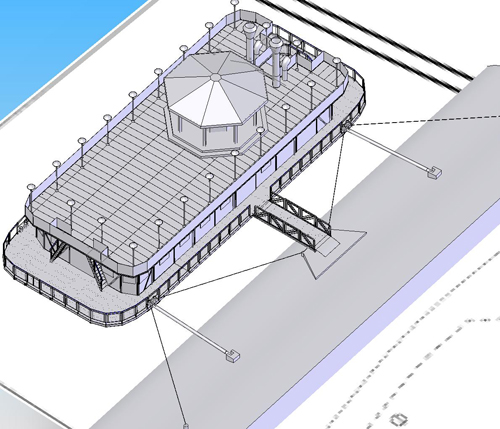

Layout length LTK [m]26
Layout distance from the edge of the shore BTK [m]5
Shallow depth TG [m]0,615
Minimal operating waterlevel LÜVmin [mBf]95,92
Maximal operating waterlevel LÜVmax [mBf]96,32
Minimal emergency waterlevel LKHV [mBf]94,82

Ship engineer tasks:

Technical description

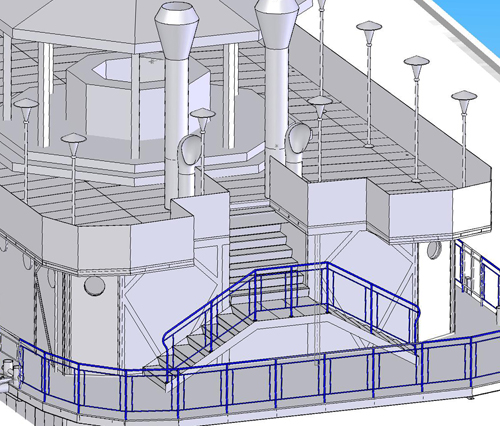

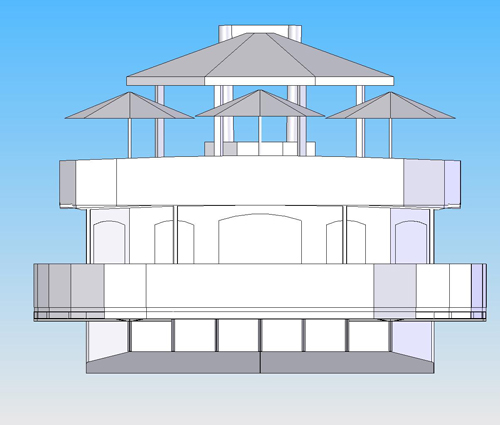

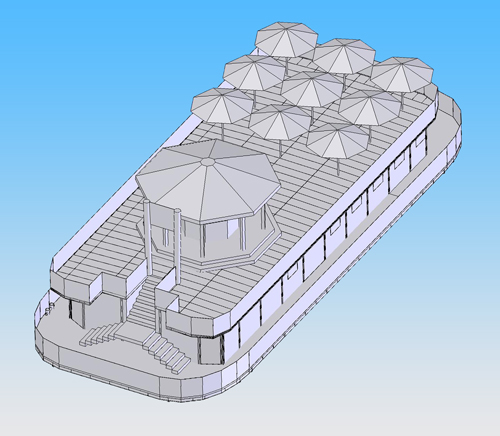

General arranegment, general structure design
Drawings
Layout arrangement
General structural design
Linesplan
Calculation of hydrostatics
Buoyancy and stabilty check
Electrical load calculation, electric networks, emergency lighting, lightning protection
Domestic and fire water system
Design of heating system
Airconditioning arrangement
Blackwater system, blackwater unloading plan
Fire-protecting system, escape routes, evacuation analysis, emergency exits
Calculation of maximal number of crew and passengers
Operational guide
Constructional documentation and instructions
