« Ports and floating structures



( AG-000-000 )

Port name:Esztergom pontoon
Floating structure category:Floating dock and landing stage

Project's details:

Project number:AG-000-000

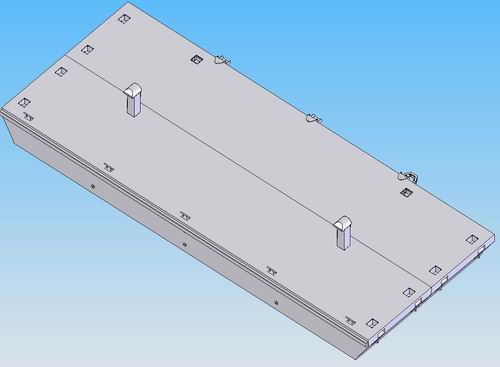

Project name:Type approval project documantation of the ESZTERGOM concrete pontoon

Applied rules/registers:

Nautical Regulations
EUROCODE 2 Design of concrete structures
EUROCODE 1 Traffic loads of bridges
EUROCODE 1 Foundamentals of design
Belvízi hajók, úszó kikötőhelyek, követelmények, vizsgálatok (MSZ EN 14504)
A belvízi utakon közlekedő úszólétesítmények hajózásra alkalmassága és megfelelősége feltételeiről, az úszóképesség vizsgálatáról és tanúsításáról szóló 13/2001. (IV.10.) KöViM rendelet.

Main features:

Length overall, Lbef [m]12
Maximum length, Lmax1 [m]12
Maximum length of ship/pontoon structure, Lmax2 [m]12
Waterline length, Lcw1 [m]11,685
Maximum length with fender rail, Bmax [m]2,6
Ponton/ship breadth, B [m]2,4
Waterline breadth, Bcw [m]2,4
Depth, D [m]1
Freeboard, f [m]0,49
Airdraft from baseline, Hfix [m]1,2
Lightship, delta0 [t]13
Maximum displacement, deltamax [t]14,024
Maximum pontoon/ship draugth, Th [m]0,51
Maximal passeger capacity, n [fő]11

Ship engineer tasks:

Technical description
General arranegment, general structure design
Drawings

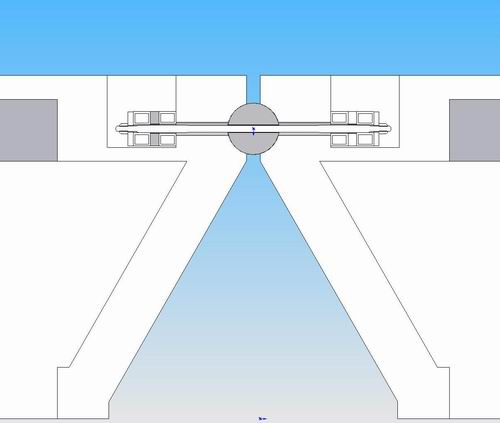

General structural design

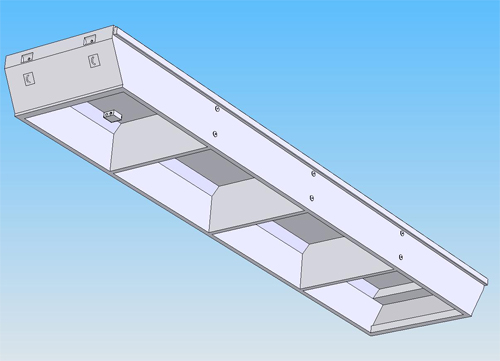

Pontoon design
Linesplan
Calculation of hydrostatics
Weight and stability calculation
Buoyancy and stabilty check
Strength analysis
Electrical load calculation, electric networks, emergency lighting, lightning protection
Domestic and fire water system
Calculation of maximal number of crew and passengers
Arrangement of equipments and lifesaving means
Constructional documentation and instructions
