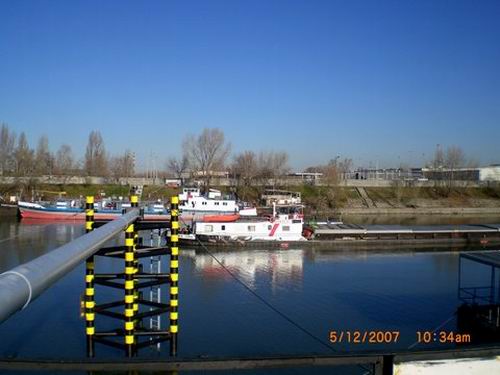

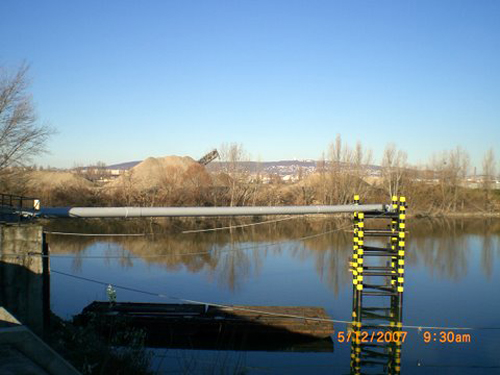

Port name:Csepel Kerosene Port

Project's details:

Project number:AX-000-000

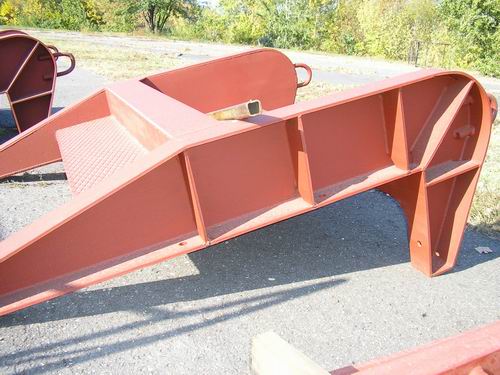

Project name:Strength analysis of the port protecting piles and the structure of their parts, constructional documentation

Applied rules/registers:

Calculations according to GL

Main features:

Length overall, Lbef [m]14
Ponton/ship breadth, B [m]9.55
Depth, D [m]1.2
Lightship, delta0 [t]23.5
Maximum pontoon/ship draugth, Th [m]0.3
Maximal passeger capacity, n [fő]10
Capacity of port, number of boats, ships, n [db]1
Main dimensions of ships, L [m]125
Main dimensions of ships, B [m]11
Main dimensions of ships, Tmax [m]2.5
Maximal allowable displacement, delta [t/egység]3000
Boarding bridge parameters, effective width [m]0.9
Boarding bridge parameters, span of bridge [m]24
Boarding bridge parameters, design load [kN/m2]5

Ship engineer tasks:

General arranegment, general structure design
Drawings
Strength analysis
Calculation of maximal number of crew and passengers
Constructional documentation and instructions
