« Ports and floating structures


Private port
( GK-000-000 )

Port name:ÉDÜKÖVIZIG Port Gönyű
Floating structure category:Floating harbours
Type of purpose:Private port

Project's details:

Project number:GK-000-000
Project name:Approval project and constructional documentation of ÉDUKÖVIZIG private floating structure port installed at Gönyű

Applied rules/registers:

Belvízi hajók, úszó kikötőhelyek, követelmények, vizsgálatok (MSZ EN 14504)
A belvízi utakon közlekedő úszólétesítmények hajózásra alkalmassága és megfelelősége feltételeiről, az úszóképesség vizsgálatáról és tanúsításáról szóló 13/2001. (IV.10.) KöViM rendelet.

Main features:

Length overall, Lbef [m]37,52
Maximum length, Lmax1 [m]37,52
Maximum length of ship/pontoon structure, Lmax2 [m]37,52
Waterline length, Lcw1 [m]37,52
Maximum length with fender rail, Bmax [m]8
Ponton/ship breadth, B [m]7,75
Waterline breadth, Bcw [m]7,75
Depth, D [m]1
Freeboard, f [m]0,6
Airdraft from baseline, Hfix [m]4,748
Lightship, delta0 [t]48
Maximum displacement, deltamax [t]68
Maximum pontoon/ship draugth, Th [m]0,385
Maximal number of crew, n1 [fő]1
Maximum load [t]20

Ship engineer tasks:

Technical description
General arranegment, general structure design
Drawings

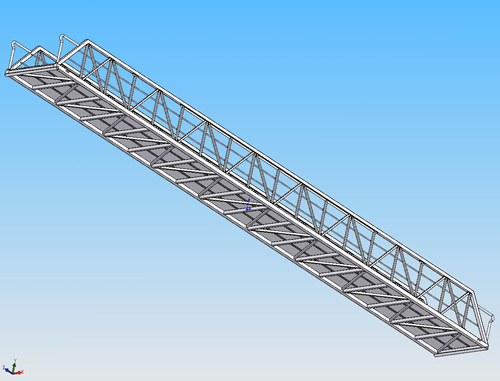

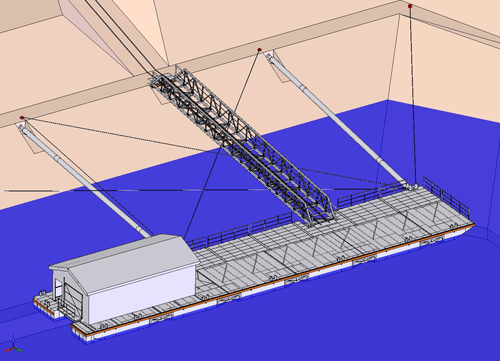

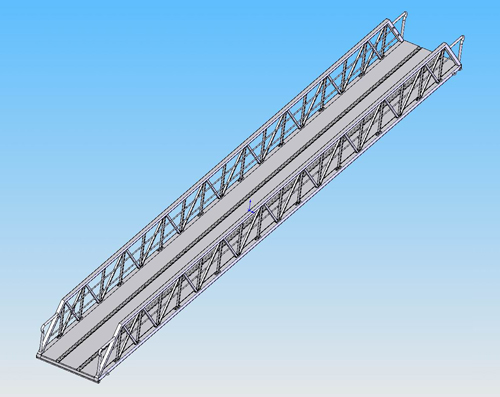

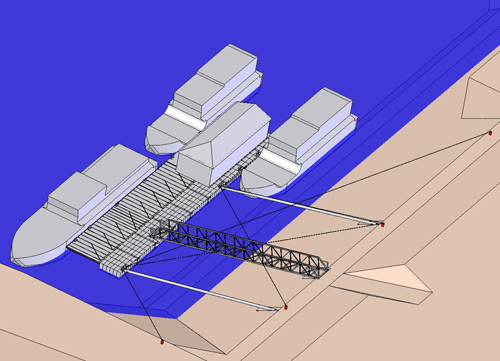

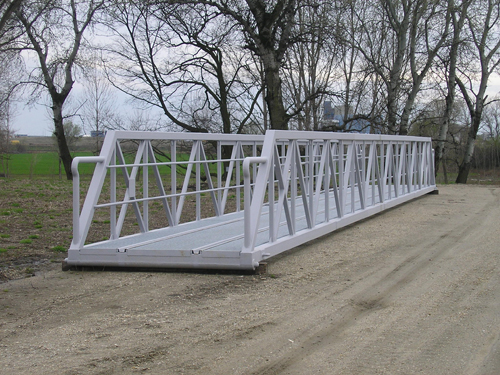

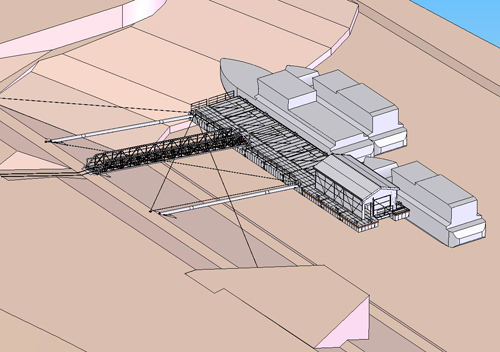

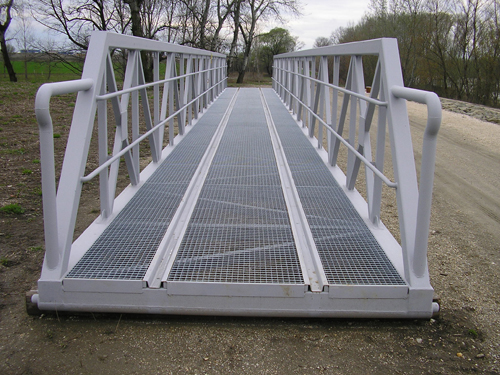

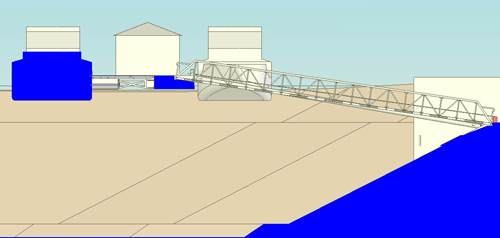

Layout arrangement

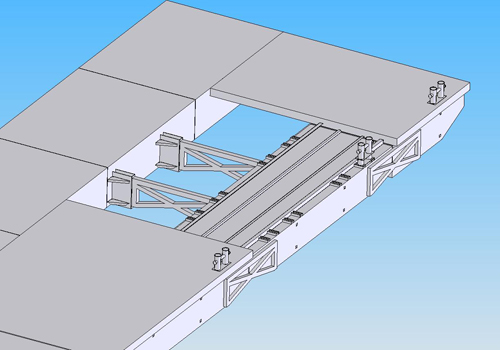

General structural design
Calculation of hydrostatics
Buoyancy and stabilty check
Subdivision and damage stability calculations
Strength analysis
Electrical load calculation, electric networks, emergency lighting, lightning protection
Domestic and fire water system
Arrangement of fire-protecting equipments
Fire safety instructions
Operational guide
Constructional documentation and instructions
