« Motor ships

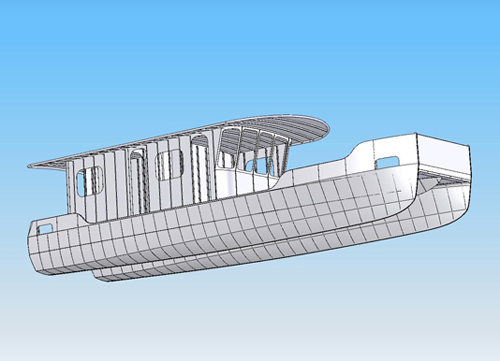

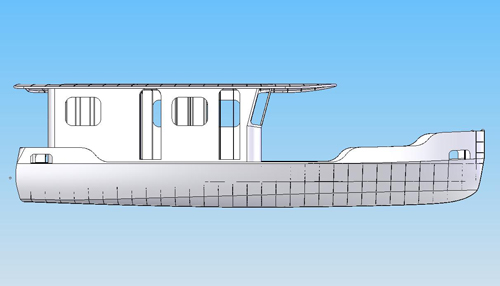

CAT 13
( 6w50sl304015 )

Ship category:Motor pleasure yachts
Name of class:CAT 13
Construction:Aluminium

Project's details:

Project number:6w50sl304015
Project name:Specific approval project documentation of a leasure motor craft

Applied rules/registers:

Technical Directives for Inland Small Crafts and Boats
Nautical Regulations

Main features:

Length overall, Lbef [m]13
Maximum length, Lmax1 [m]13
Maximum length of hull, Lmax2 [m]13
Waterline length, Lwl [m]12,8
Maximum breadth with fender rail, Bmax [m]4,1
Breadth of hull, b [m]4
Waterline breadth, Bwl [m]3,5
Depth, D [m]1,5
Freeboard, f [m]0,95
Airdraft from baseline, Hfix [m]3,7
Lightship, delta0 [t]4,5
Deadweigth, deltamax [t]6,5
Mean draugth without speed [m]0,4
Inbuilt engine power rating, N [hp]2x115
Service speed, v [km/h]40
Crew, n11
Maximum passenger capacity, n2 [fő]11
Maximum load [kg]2000
Character of main engineOutboard engine, benzin

Ship engineer tasks:

Technical desription
General arrangement, general structure design
Electric system
Rudder and hydraulic systems
Heating and airconditioning systems
Arrangement of compartments
Hull design
Linesplan
Calculation of hydrostatics
Limiting stability calculation
Buoyancy and stability check
Ship strength calculation
Propulsion calculation
Engine fitting design
Arrangements of equipments and lifesaving means
Navigation equipments
Drinking water, blackwater and sewage systems
Construction documentation
Calculation of hull plating
Stiffening and calculation of framing
Machinery equipments
