« Motor ships

( AST 43-000-00 )

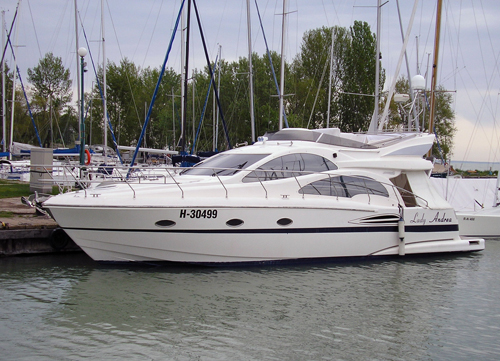

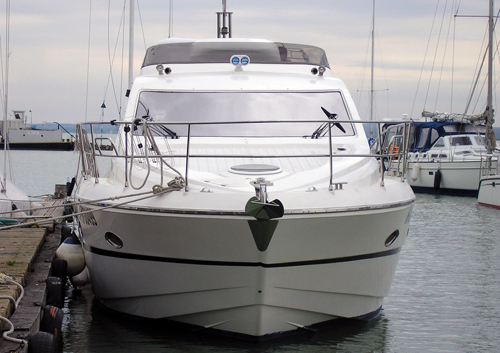

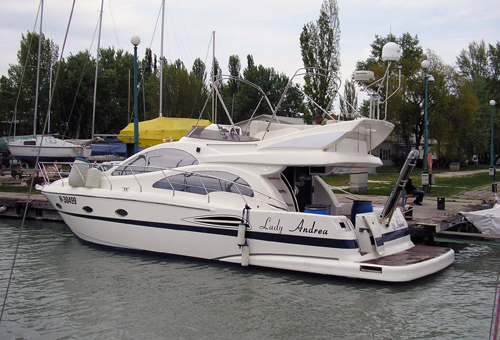

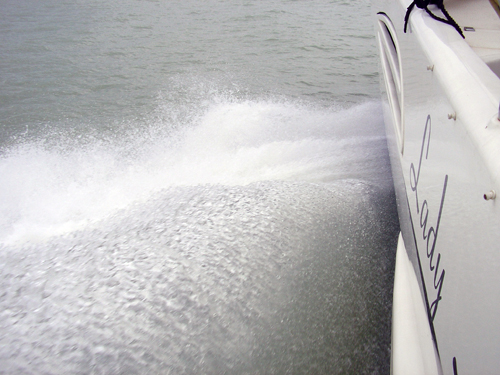

Ship name:Lady Andrea
Ship category:Commercial vessels
Name of class:ASTONDOA 43 GLX
Construction:Glass Reinforced Plastic

Project's details:

Project number:AST 43-000-00
Project name:Dynamic stability of planing craft in planing and semi-planing mode
Project description:Buoyancy, stability check and dynamic stability check in planing mode of a watercraft.

Applied rules/registers:

Technical supervisory regulations for inland ships
High Speed Craft Code 2000

Main features:

Length overall, Lbef [m]13,2
Maximum length, Lmax1 [m]13,11
Maximum length of hull, Lmax2 [m]11,998
Waterline length, Lwl [m]10,64
Maximum breadth with fender rail, Bmax [m]4,166
Breadth of hull, b [m]3,998
Waterline breadth, Bwl [m]3,691
Depth, D [m]2,28
Freeboard, f [m]1,23
Airdraft from baseline, Hfix [m]4,334
Lightship, delta0 [t]13
Deadweigth, deltamax [t]15,92
Maximum hull draugth, Th [m]0,876
Maximum draugth, T [m]1,1
Inbuilt engine power rating, N [kW]2x316
Service speed, v [km/h]45
Crew, n11
Maximum passenger capacity, n2 [fő]11
Maximum load [kg]1200
CE classification of design categoryB
Type of main engine2 VOLVO PENTA TAM74C
Character of main engineDiesel
Continuous service raing [LE]2x430

Ship engineer tasks:

Calculation of hydrostatics
Inclining experiment documentation
Inclining experiment summary
Weigth and stability calculation
Buoyancy and stability check
Documentation of dynamic inclining experiment in planing mode
Summary of dynamic inclining experiment in planing mode
Calculation of stability in planing mode
