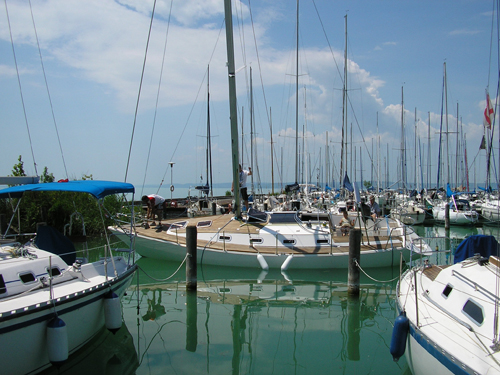

( APS38-000-00 )

Ship category:Sailing pleasure yachts
Name of class:APS-CO38
Construction:Glass Reinforced Plastic

Project's details:

Project number:APS38-000-00
Project name:Analyses and inclining experiment according to ISO 12217-2 regulation
Project description:Obtaining the main dimensions and freeboard of a small craft and inclining experiment according to ISO 12217-2 to check the buoyancy characteristics and stability.

Applied rules/registers:

KöViM Rules for Design, Construction and Conformance of Pleasure Boats
Calculations according to ISO (Iternational Organization for Standardisation)

Main features:

Length overall, Lbef [m]11,4
Maximum length, Lmax1 [m]11,4
Maximum length of hull, Lmax2 [m]11
Maximum breadth with fender rail, Bmax [m]3,45
Breadth of hull, b [m]3,54
Depth, D [m]2,1
Freeboard, f [m]1,06
Airdraft from baseline, Hfix [m]17,5
Lightship, delta0 [t]6,5
Deadweigth, deltamax [t]8,1
Draugth with propulsory equipment, centerboard and keel, Tk [m]1,9
Inbuilt engine power rating, N [kW]30,9
Fuel [kg]99
Drinking water [l]450
CE classification of design categoryC
Type of sailBermudan ketch
Main mast, P [m]13,4
Main mast, l [m]14,6
Main mast, E [m]4,5
Main mast, J [m]4,207
Main mast, AM [m2]30,15
Main mast, AF [m2]30,71
Keel depth [m]1,9
Weigth of bulb [t]2,7
Main mast AN [m2]60,86

Ship engineer tasks:

Calculation of hydrostatics
Inclining experiment documentation
Inclining experiment summary
