EQUATOR CAT 65
( )

Ship category:Passenger tall ships
Name of class:EQUATOR CAT 65
Construction:GRP sandwich construction built with own designed prototype

Project's details:

Project name:Concept design of a 65' sailing catamaran made of GRP sandwich material

Applied rules/registers:

Calculations according to GL
High Speed Craft Code 2000

Main features:

Length overall, Lbef [m]19,95
Maximum length, Lmax1 [m]19,95
Maximum length of hull, Lmax2 [m]19,95
Waterline length, Lwl [m]19,22
Maximum breadth with fender rail, Bmax [m]10,7
Breadth of hull, b [m]10,6
Waterline breadth, Bwl [m]10,3
Depth, D [m]2,6
Freeboard, f [m]1,2
Airdraft from baseline, Hfix [m]4,1
Lightship, delta0 [t]20
Deadweigth, deltamax [t]30
Draugth with propulsory equipment, centerboard and keel, Tk [m]1,4/2,5
Maximum draugth, T [m]1,4/2,5
Inbuilt engine power rating, N [hp]2x85
Service speed, v [km/h]18
Crew, n13
Maximum passenger capacity, n2 [fő]80
Maximum load [kg]10000 (with pax)
Type of sailSloop
Main mast, P [m]21,35
Main mast, l [m]19,46
Main mast, E [m]8,52
Main mast, J [m]6,26
Main mast, AM [m2]113
Main mast, AF [m2]52
Keel depth [m]0,6/1,7
Main mast AN [m2]165

Ship engineer tasks:

Technical desription
General arrangement, general structure design
Machinery arrangement
Electric system
Rudder and hydraulic systems
Heating and airconditioning systems

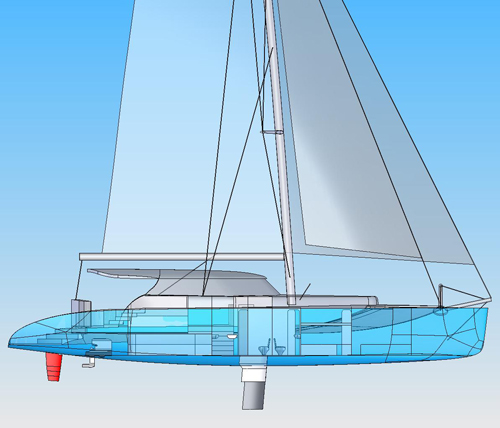

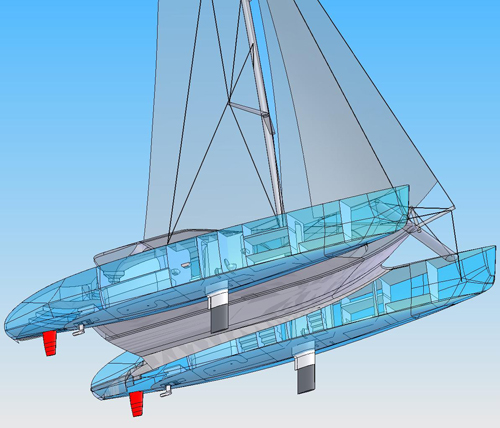

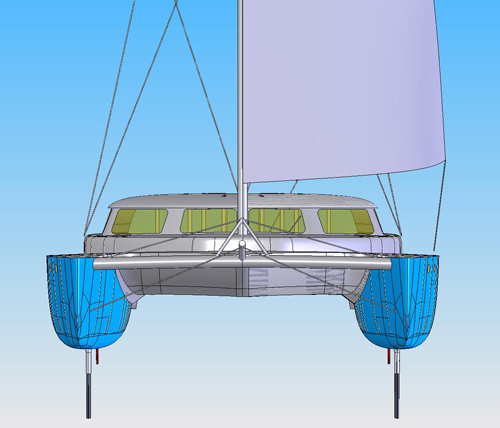

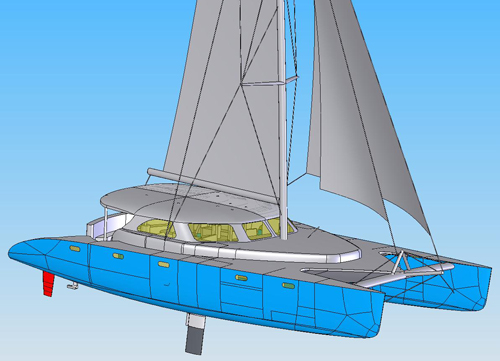

General arrangement and sail plan

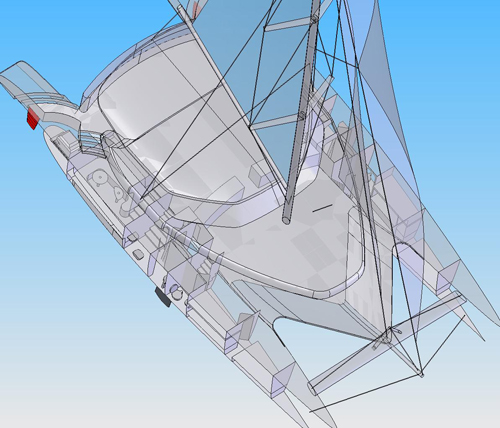

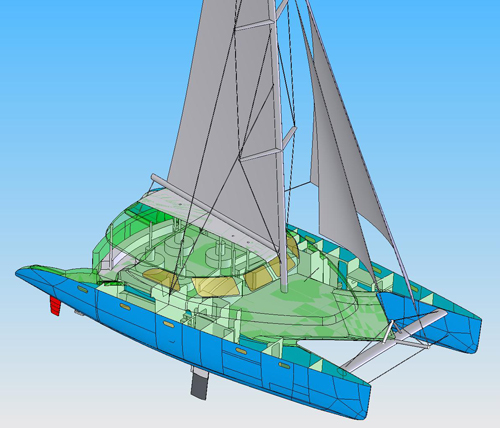

Arrangement of compartments

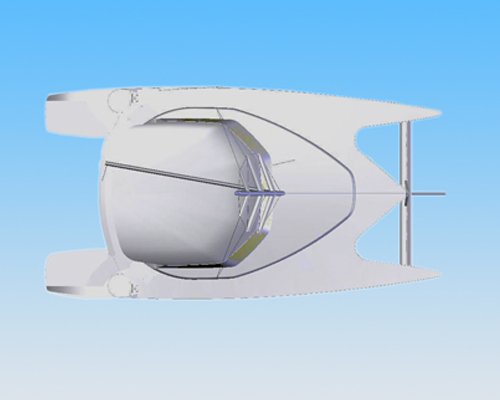

Hull and deck arrangement

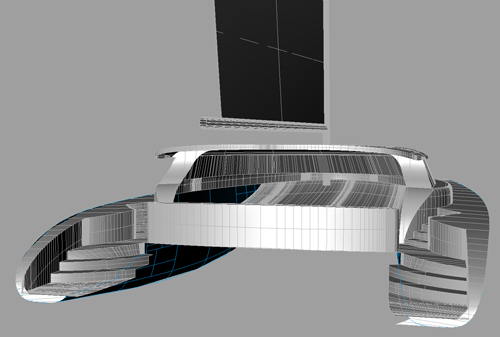

Hull design

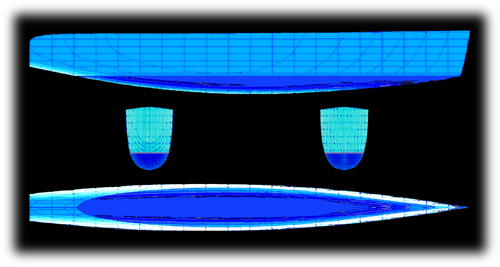

Linesplan
Calculation of hydrostatics
Weigth and stability calculation
Buoyancy and stability check
Ship strength calculation
Sail design and calculation
Mast design
Preliminary resistance and propulsion calculation
Construction documentation
Calculation of hull plating
Stiffening and calculation of framing
Machinery equipments
