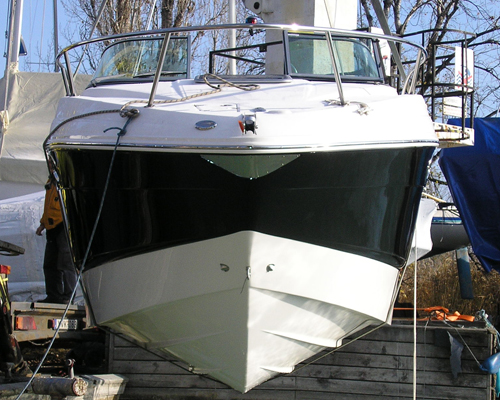

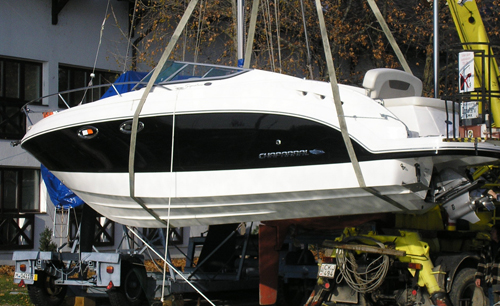

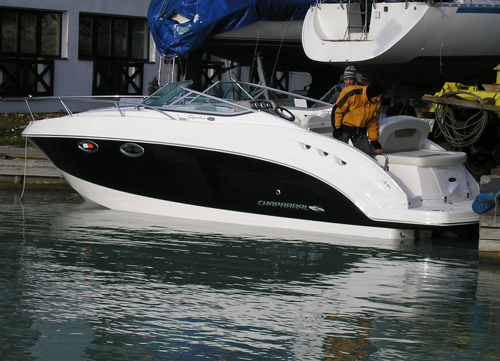

CHAPARRAL SIGNATURE 250 CRUISER
( CHAS 9-001-00 )

Ship category:Commercial vessels
Name of class:CHAPARRAL SIGNATURE 250 CRUISER
Construction:Glass Reinforced Plastic

Project's details:

Project number:CHAS 9-001-00
Project name:Dynamic stability of planing craft in planing and semi-planing mode
Project description:Buoyancy, stability check and dynamic stability check in planing mode of a watercraft.

Applied rules/registers:

Technical supervisory regulations for inland ships
High Speed Craft Code 2000

Main features:

Length overall, Lbef [m]9,08
Maximum length, Lmax1 [m]9,08
Maximum length of hull, Lmax2 [m]8,23
Waterline length, Lwl [m]6,139
Maximum breadth with fender rail, Bmax [m]2,59
Breadth of hull, b [m]2,59
Waterline breadth, Bwl [m]2,371
Depth, D [m]1,9
Freeboard, f [m]0,6
Airdraft from baseline, Hfix [m]2,44
Lightship, delta0 [t]3,19
Deadweigth, deltamax [t]4,22
Draugth with propulsory equipment, centerboard and keel, Tk [m]0,84
Inbuilt engine power rating, N [kW]1x239
Inbuilt engine power rating, N [hp]320
Maximum motor power rating, N [kw]280
Service speed, v [km/h]50
Crew, n11
Maximum passenger capacity, n2 [fő]6
Maximum load [kg]650
CE classification of design categoryC

Ship engineer tasks:

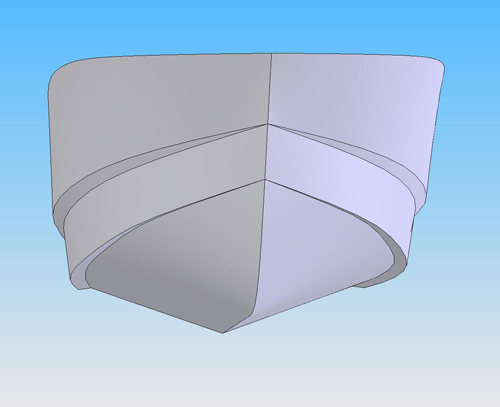

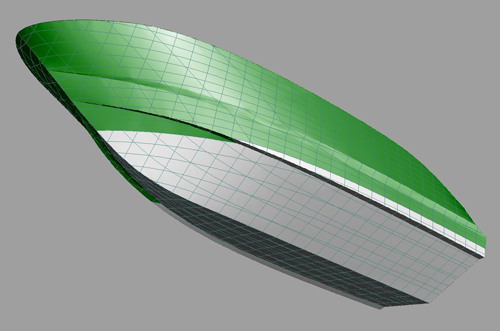

Linesplan
Calculation of hydrostatics
Inclining experiment documentation
Inclining experiment summary
Weigth and stability calculation
Buoyancy and stability check
Documentation of dynamic inclining experiment in planing mode
Summary of dynamic inclining experiment in planing mode
