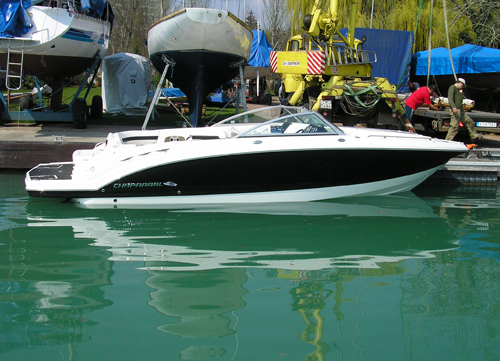

CHAPARRAL 284 SUNESTA
( CHSU 9-001-00 )

Ship category:Commercial vessels
Name of class:CHAPARRAL 284 SUNESTA
Construction:Glass Reinforced Plastic

Project's details:

Project number:CHSU 9-001-00
Project name:Dynamic stability of planing craft in planing and semi-planing mode
Project description:Buoyancy, stability check and dynamic stability check in planing mode of a watercraft.

Applied rules/registers:

Technical supervisory regulations for inland ships
High Speed Craft Code 2000

Main features:

Length overall, Lbef [m]9,08
Maximum length, Lmax1 [m]9,08
Maximum length of hull, Lmax2 [m]8,64
Waterline length, Lwl [m]6,608
Maximum breadth with fender rail, Bmax [m]2,74
Breadth of hull, b [m]2,654
Waterline breadth, Bwl [m]2,37
Depth, D [m]1,7
Freeboard, f [m]0,6
Airdraft from baseline, Hfix [m]2,12
Lightship, delta0 [t]2,903
Deadweigth, deltamax [t]4,078
Draugth with propulsory equipment, centerboard and keel, Tk [m]0,99
Inbuilt engine power rating, N [kW]1x280
Inbuilt engine power rating, N [hp]375
Maximum motor power rating, N [kw]317
Service speed, v [km/h]50
Crew, n11
Maximum passenger capacity, n2 [fő]9
Maximum load [kg]800
CE classification of design categoryC
Type of main engine1 VOLVO PENTA 8.1 GI-J
Continuous service raing [LE]1x320

Ship engineer tasks:

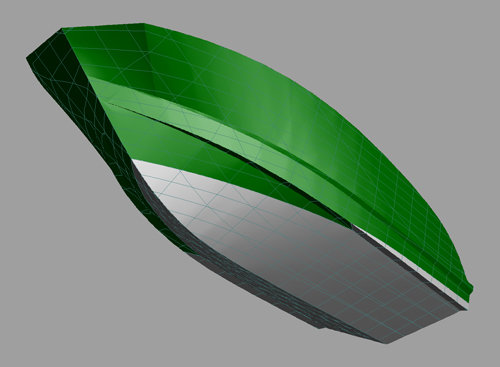

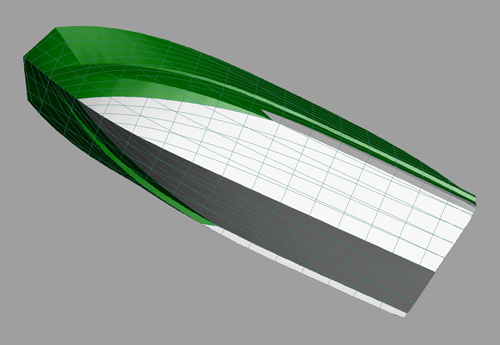

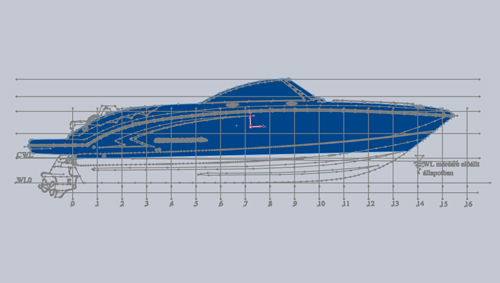

Linesplan
Calculation of hydrostatics

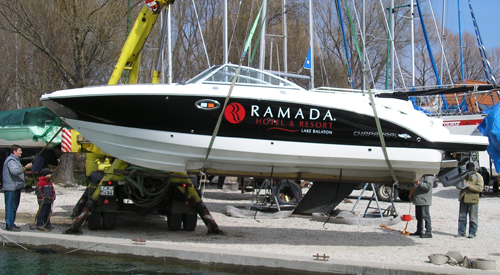

Inclining experiment documentation
Inclining experiment summary
Weigth and stability calculation
Buoyancy and stability check
Documentation of dynamic inclining experiment in planing mode
Summary of dynamic inclining experiment in planing mode
