« Motor ships

( CR 34-001-00 )

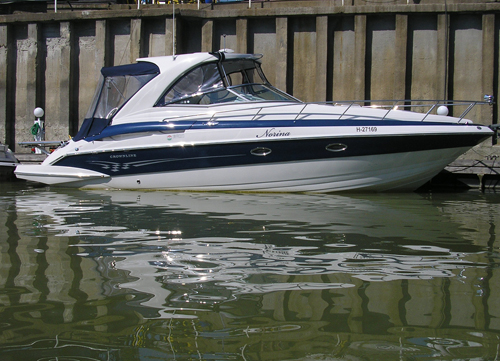

Ship name:Norina
Ship category:Commercial vessels
Name of class:CROWNLINE 340 CR
Construction:Glass Reinforced Plastic

Project's details:

Project number:CR 34-001-00
Project name:Dynamic stability of planing craft in planing and semi-planing mode
Project description:Buoyancy, stability check and dynamic stability check in planing mode of a watercraft.

Applied rules/registers:

Technical supervisory regulations for inland ships
High Speed Craft Code 2000

Main features:

Length overall, Lbef [m]11
Maximum length, Lmax1 [m]11
Maximum length of hull, Lmax2 [m]9,915
Maximum breadth with fender rail, Bmax [m]3,63
Breadth of hull, b [m]3,497
Depth, D [m]1,8
Freeboard, f [m]0,6
Airdraft from baseline, Hfix [m]4,08
Lightship, delta0 [t]7,576
Deadweigth, deltamax [t]9,276
Draugth with propulsory equipment, centerboard and keel, Tk [m]1,043
Inbuilt engine power rating, N [kW]320
Maximum motor power rating, N [kw]634
Maximum allowable engine power rating, N [hp]850
Service speed, v [km/h]45
Crew, n11
Maximum passenger capacity, n2 [fő]9
Maximum load [kg]850
CE classification of design categoryB
Type of main engine2 Mercruser BRAVO III
Continuous service raing [LE]2x320

Ship engineer tasks:

Technical desription
General arrangement, general structure design

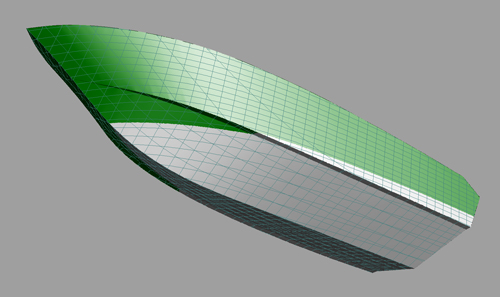

Calculation of hydrostatics
Inclining experiment documentation
Inclining experiment summary
Weigth and stability calculation
Buoyancy and stability check
Documentation of dynamic inclining experiment in planing mode
Summary of dynamic inclining experiment in planing mode
Arrangements of equipments and lifesaving means
Passenger arrangement
