Marine engineering, ship design

« Motor ships


METEOR (342, 342 E)
( SO II-000-000 )

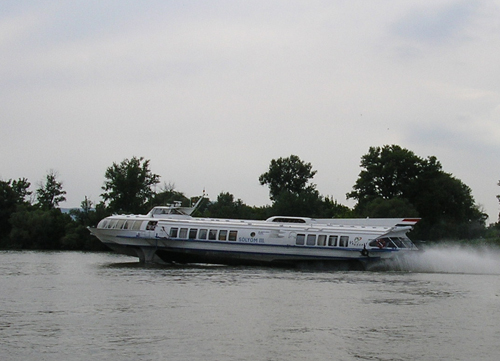

Ship name:Sólyom II.
Ship category:Passenger vessels
Name of class:METEOR (342, 342 E)
Construction:Riveted alloy aluminium

Project's details:

Project number:SO II-000-000
Project name:Safety modernization of "SÓLYOM III." hydrofoil
Project description:Engineering solutions of passenger and crew safety for a high speed passenger ship.

Applied rules/registers:

High Speed Craft Code 2000

Main features:

Maximum length, Lmax1 [m]34,5
Maximum breadth with fender rail, Bmax [m]9,5
Breadth of hull, b [m]6,01
Lightship, delta0 [t]37,2
Deadweigth, deltamax [t]53,4
Draugth in displacement mode [m]2,35
Foilbourne draugth [m]1,2
Service speed, v [km/h]60
Maximum service speed, vmax [km/h]66
Maximum passenger capacity, n2 [fő]108
Maximum load [kg]17000
Type of main engine2 Zvezda M400, vagy 2 Zvezda M401-A2
Character of main engine12 cylinder supercharged diesel engine
Cylinder capacity [ccm]2x62400
Continuous service raing [LE]1000, 1000
Continuous service revolution [1/min]1750, 1500
Maximum Continuous rating [LE]1100, 1100
Maximum Continuous revolution [1/min]1800, 1600
Range of service [km]650

Ship engineer tasks:

Arrangement of additional security equipments
Modernization of security systems
