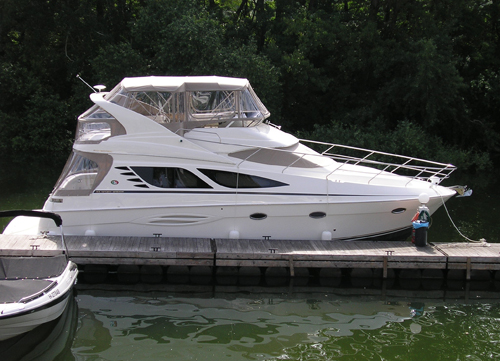

SILVERTON 43 SPORT BRIDGE
( SIL SB43-911-00 )

Ship category:Commercial vessels
Name of class:SILVERTON 43 SPORT BRIDGE
Construction:Glass Reinforced Plastic

Project's details:

Project number:SIL SB43-911-00
Project name:Dynamic stability of planing craft in planing and semi-planing mode
Project description:Buoyancy, stability check and dynamic stability check in planing mode of a watercraft.

Applied rules/registers:

KöViM Rules for Trial and Certification of Conformance, Buoyancy of Inland Navigation Vessels
Technical supervisory regulations for inland ships
High Speed Craft Code 2000

Main features:

Length overall, Lbef [m]13,23
Maximum length, Lmax1 [m]13,23
Maximum length of hull, Lmax2 [m]13,23
Waterline length, Lwl [m]10,6
Maximum breadth with fender rail, Bmax [m]4,37
Breadth of hull, b [m]4,34
Waterline breadth, Bwl [m]4,012
Depth, D [m]2,6
Freeboard, f [m]0,735
Airdraft from baseline, Hfix [m]5,08
Lightship, delta0 [t]12,712
Deadweigth, deltamax [t]15,681
Draugth with propulsory equipment, centerboard and keel, Tk [m]1,13
Inbuilt engine power rating, N [kW]2x276
Service speed, v [km/h]40
Crew, n11
Maximum passenger capacity, n2 [fő]11
Maximum load [kg]1020
CE classification of design categoryB
Type of main engine2 VOLVO D-6
Character of main engine6 cylinder, diesel
Continuous service raing [LE]2x370

Ship engineer tasks:

Technical desription
General arrangement, general structure design

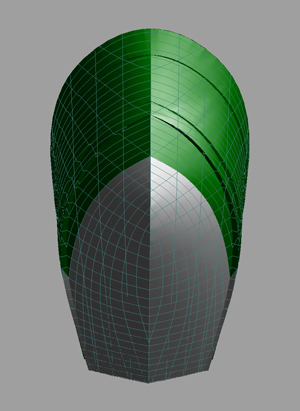

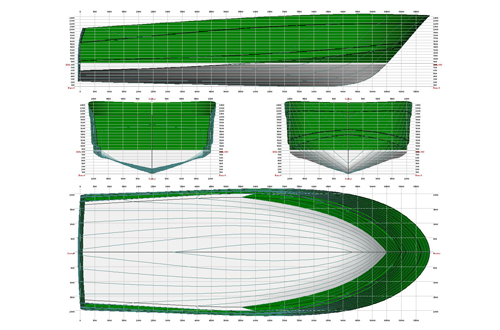

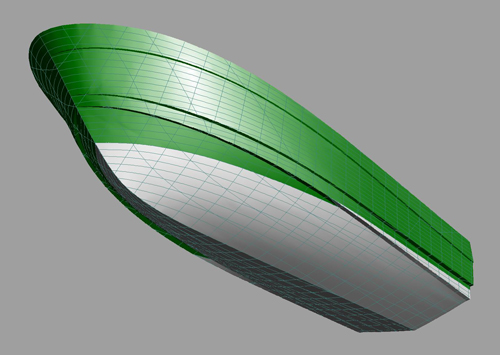

Linesplan
Calculation of hydrostatics
Inclining experiment documentation
Inclining experiment summary
Weigth and stability calculation
Buoyancy and stability check
Documentation of dynamic inclining experiment in planing mode
Summary of dynamic inclining experiment in planing mode
Arrangements of equipments and lifesaving means
Passenger arrangement
