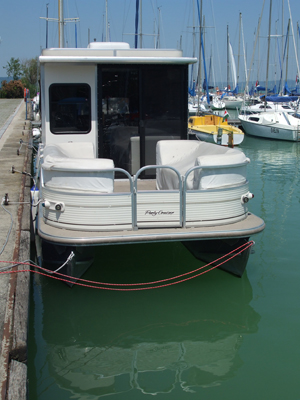

SUNTRACKER PARTY CRUISER 32 I/0 REGENCY EDITION
( STPC 32-001-00 )

Ship category:Commercial vessels
Name of class:SUNTRACKER PARTY CRUISER 32 I/0 REGENCY EDITION

Project's details:

Project number:STPC 32-001-00
Project name:Stability assessment of a public carrier catamaran applying the HSC code 2000
Project description:Buoyancy, stability check of a watercraft.

Applied rules/registers:

Technical supervisory regulations for inland ships
High Speed Craft Code 2000

Main features:

Length overall, Lbef [m]10,36
Maximum length, Lmax1 [m]9,55
Maximum length of hull, Lmax2 [m]9,55
Waterline length, Lwl [m]9,289
Maximum breadth with fender rail, Bmax [m]2,6
Breadth of hull, b [m]2,59
Waterline breadth, Bwl [m]2,584
Depth, D [m]0,85
Freeboard, f [m]0,45
Airdraft from baseline, Hfix [m]3,55
Lightship, delta0 [t]2,295
Deadweigth, deltamax [t]3,388
Draugth with propulsory equipment, centerboard and keel, Tk [m]0,8
Inbuilt engine power rating, N [kW]1x100
Inbuilt engine power rating, N [hp]135
Maximum allowable engine power rating, N [hp]150
Service speed, v [km/h]20
Crew, n11
Maximum passenger capacity, n2 [fő]11
Maximum load [kg]900
CE classification of design categoryC
Type of main engineMercury MerCruiser MCM 3.0
Continuous service raing [LE]1x135

Ship engineer tasks:

Linesplan
Calculation of hydrostatics
Inclining experiment documentation
Inclining experiment summary
Weigth and stability calculation
Buoyancy and stability check
