Marine engineering, ship design

« Motor ships

( BI I II IV-000-000 )

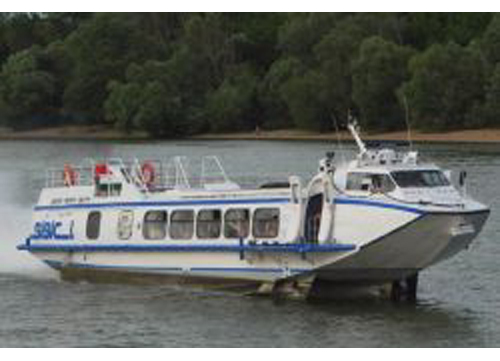

Ship name:Bibic I., II., IV.
Ship category:Passenger vessels
Name of class:POLESJE
Construction:Riveted aluminium

Project's details:

Project number:BI I II IV-000-000
Project name:Safety modernization of "BIBIC I., II., IV. and III." hydrofoils
Project description:Engineering solutions of passenger and crew safety for a high speed passenger ship.

Applied rules/registers:

High Speed Craft Code 2000

Main features:

Maximum length, Lmax1 [m]21,3
Maximum breadth with fender rail, Bmax [m]5
Breadth of hull, b [m]3,6
Lightship, delta0 [t]14,97
Deadweigth, deltamax [t]21,63
Draugth in displacement mode [m]1,03
Foilbourne draugth [m]0,4
Service speed, v [km/h]65
Maximum service speed, vmax [km/h]70
Drinking water [l]100
Maximum passenger capacity, n2 [fő]54
Maximum load [kg]4380
Type of main engine1 Zvezda M401-A2
Character of main engine12 cylinder TD
Cylinder capacity [ccm]1x62400
Continuous service raing [LE]1000
Continuous service revolution [1/min]1500
Maximum Continuous rating [LE]1100
Maximum Continuous revolution [1/min]1600
Range of service [km]400

Ship engineer tasks:

Arrangement of additional security equipments
Modernization of security systems
