« Motor ships


Custom-built
( )

Ship category:Motor pleasure yachts
Name of class:Custom-built

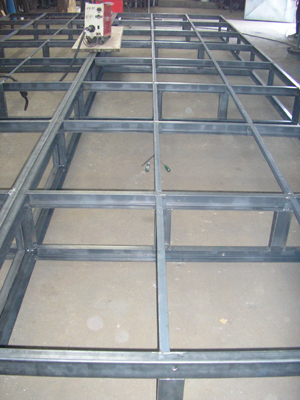

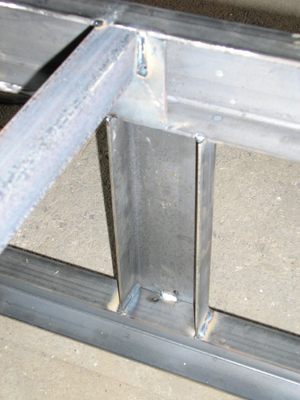

Construction:Steel pontoon structure

Project's details:

Project name:Leasure watercraft technical documentation

Applied rules/registers:

Technical Directives for Inland Small Crafts and Boats
Nautical Regulations

Main features:

Length overall, Lbef [m]7.1
Maximum length, Lmax1 [m]7.1
Maximum length of hull, Lmax2 [m]7.1
Waterline length, Lwl [m]6.72
Maximum breadth with fender rail, Bmax [m]3.5
Breadth of hull, b [m]3.5
Waterline breadth, Bwl [m]3.41
Depth, D [m]0.99
Freeboard, f [m]0.69
Airdraft from baseline, Hfix [m]3.135
Lightship, delta0 [t]1.89
Deadweigth, deltamax [t]2.89
Mean draugth without speed [m]0.3
Inbuilt engine power rating, N [hp]1x30
Crew, n11
Maximum passenger capacity, n2 [fő]11
Maximum load [kg]1000

Ship engineer tasks:

Technical desription
