Jolle 30
( )

Ship category:Sailing pleasure yachts
Name of class:Jolle 30
Construction:Plywood

Project's details:

Project name:Hull fairing, plate development, initial stability, equillibrium and mast position calculations
Project description:Hull fairing, plate development, initial stability, equillibrium and mast position calculations.

Main features:

Length overall, Lbef [m]9,64
Maximum length, Lmax1 [m]9,64
Waterline length, Lwl [m]9,08
Maximum breadth with fender rail, Bmax [m]2,72
Depth, D [m]1,09
Lightship, delta0 [t]1,75
Draugth with propulsory equipment, centerboard and keel, Tk [m]1.7
Maximum hull draugth, Th [m]0,322
Main mast, P [m]9.5
Main mast, l [m]8.65
Main mast, E [m]4.011
Main mast, J [m]3.406
Main mast, AM [m2]19,05
Main mast, AF [m2]14,71
Main mast AN [m2]33,76
Main mast EHM [m]10.5

Ship engineer tasks:

Technical desription
General arrangement, general structure design

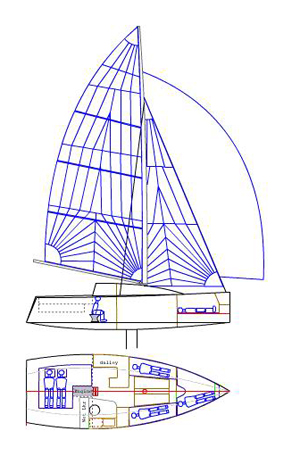

General arrangement and sail plan
Arrangement of compartments
Hull and deck arrangement
Hull design
Linesplan
Calculation of hydrostatics
Weigth and stability calculation
Buoyancy and stability check
Subdivision and damage stability calculations
Ship strength calculation
Sail design and calculation
Mast design
Mast calculation
Hull resistance and propulsion calculation
Rudder design
Laser hull and modelling
Cutting plan for plating
Plate development
