DIXIE 35
( )

Ship category:Sailing pleasure yachts
Name of class:DIXIE 35

Project's details:

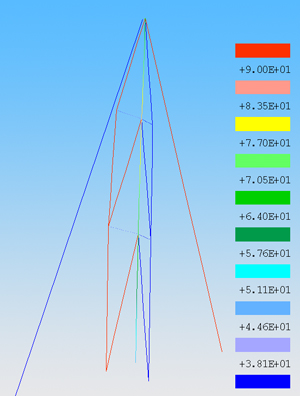

Project name:Mast strength calculation
Project description:Strength calculation of rigging.

Applied rules/registers:

Calculations according to NBS (Nordic Boat Standards)

Main features:

Maximum length, Lmax1 [m]10,6
Maximum breadth with fender rail, Bmax [m]3,2
Lightship, delta0 [t]4,04
Crew, n12
Maximum passenger capacity, n2 [fő]10
Main mast, P [m]10.75
Main mast, l [m]12.25
Main mast, E [m]3.9
Main mast, J [m]3.975
Main mast, AM [m2]20,96
Main mast, AF [m2]24,35
Weigth of bulb [t]2
Main mast AN [m2]45.31
Main mast EHM [m]12.25

Ship engineer tasks:

Linesplan

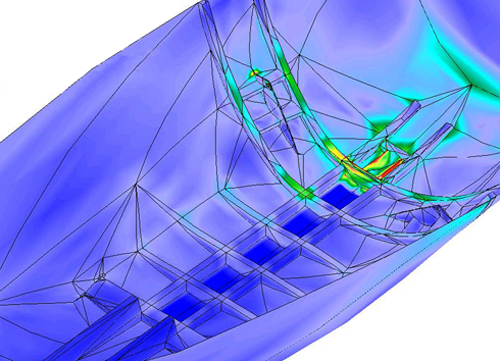

Ship strength calculation
Sail design and calculation
Mast design
Mast calculation

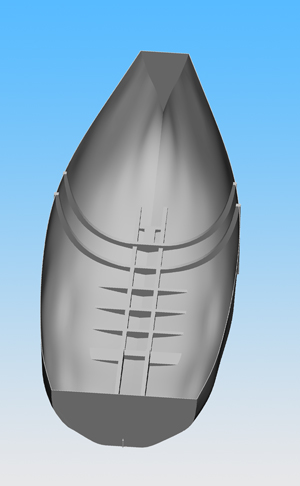

Laser hull and modelling

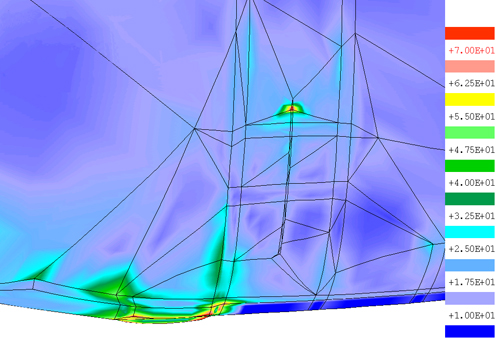

Calculation of hull plating
Stiffening and calculation of framing
