DIXIE 30
( DX30-020-00 )

Ship category:Sailing pleasure yachts
Name of class:DIXIE 30

Project's details:

Project number:DX30-020-00
Project name:Stability, equillibrium, mast position calculation, strength calculation of mast and hull, laminating plan
Project description:Stability, equillibrium, mast position calculation, strength calculation of mast and hull, laminating plan.

Applied rules/registers:

Calculations according to DNV (Det Norske Veritas)
Calculations according to NBS (Nordic Boat Standards)

Main features:

Maximum length, Lmax1 [m]9,08
Maximum breadth with fender rail, Bmax [m]2,82
Depth, D [m]1,41
Lightship, delta0 [t]2,55
Draugth with propulsory equipment, centerboard and keel, Tk [m]1.43
Maximum hull draugth, Th [m]0,4
Maximum draugth, T [m]1,43
Crew, n12
Maximum passenger capacity, n2 [fő]6
Main mast, P [m]9.3
Main mast, l [m]10.3
Main mast, E [m]3.35
Main mast, J [m]3.25
Main mast, AM [m2]15,86
Main mast, AF [m2]16,12
Keel depth [m]1,03
Weigth of bulb [t]1,1
Main mast AN [m2]31,98
Main mast EHM [m]10.5

Ship engineer tasks:

Linesplan
Calculation of hydrostatics
Weigth and stability calculation
Buoyancy and stability check

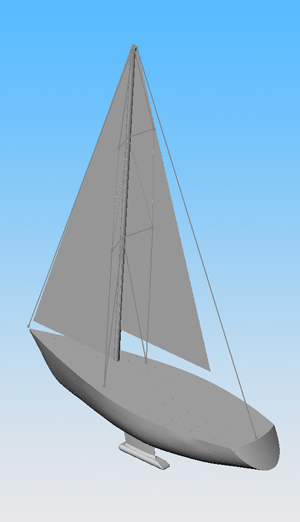

Sail design and calculation
Mast design
Mast calculation
Equillibrium calculation for the modified sailplan

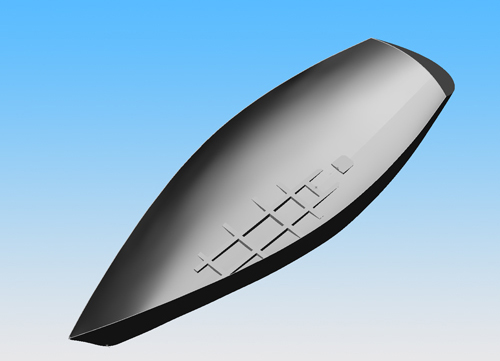

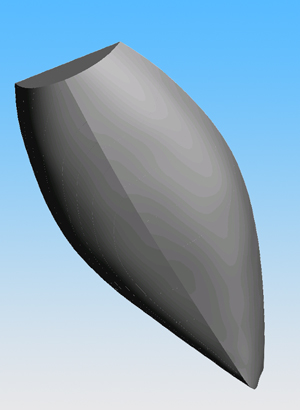

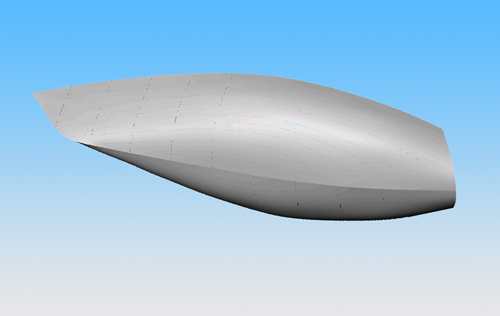

Laser hull and modelling
