« Motor ships



( MER-15-001-00 )

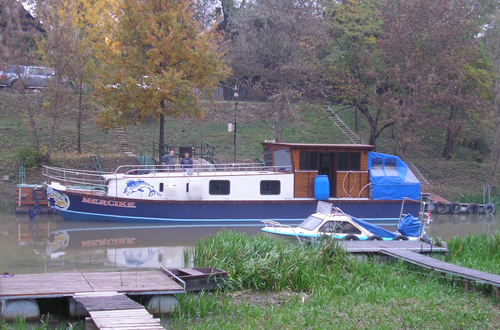

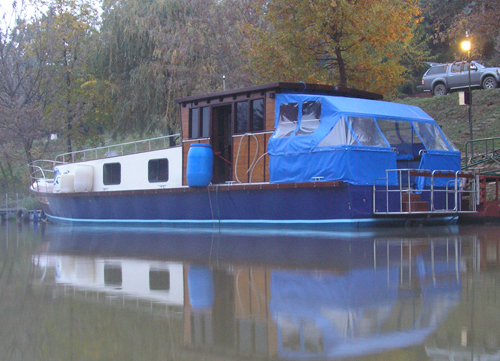

Ship name:Mercike
Ship category:Motor pleasure yachts
Construction:Steel

Project's details:

Project number:MER-15-001-00
Project name:Stability assessment of a leasure motor craft
Project description:Buoyancy, stability check of a watercraft.

Applied rules/registers:

Technical Directives for Inland Small Crafts and Boats
KöViM Rules for Design, Construction and Conformance of Pleasure Boats

Main features:

Length overall, Lbef [m]15
Maximum length, Lmax1 [m]15
Maximum length of hull, Lmax2 [m]14,7
Waterline length, Lwl [m]13,47
Maximum breadth with fender rail, Bmax [m]4,02
Breadth of hull, b [m]3,85
Waterline breadth, Bwl [m]3,46
Depth, D [m]1,25
Freeboard, f [m]0,9
Airdraft from baseline, Hfix [m]3,46
Lightship, delta0 [t]12,97
Deadweigth, deltamax [t]15,68
Draugth with propulsory equipment, centerboard and keel, Tk [m]0,791
Inbuilt engine power rating, N [kW]147
Service speed, v [km/h]15
Crew, n11
Maximum passenger capacity, n2 [fő]11
Maximum load [kg]1000
CE classification of design categoryD
Type of main engine1 VOLVO Penta
Character of main engine6 cylinder, diesel
Continuous service raing [LE]1x197

Ship engineer tasks:

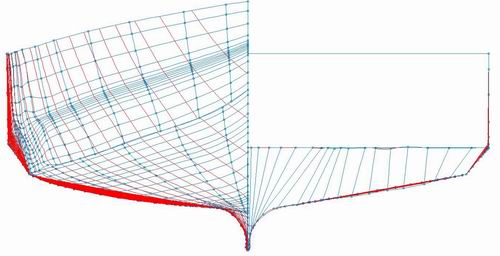

Linesplan
Calculation of hydrostatics
Inclining experiment documentation
Inclining experiment summary
Weigth and stability calculation
Buoyancy and stability check
