« Ports and floating structures



( WF-000-000 )

Port name:Waterfront kishajó kikötő Szentendre

Project's details:

Project number:WF-000-000
Project name:A Szentendrei-Dunaág 10,310-10,400 fkm jobb parti szelvényében létesítendő közforgalmú kishajó kikötő tervdokumentációja

Applied rules/registers:

EUROCODE 2 Design of concrete structures
EUROCODE 1 Traffic loads of bridges
EUROCODE 1 Foundamentals of design
Belvízi hajók, úszó kikötőhelyek, követelmények, vizsgálatok (MSZ EN 14504)

Main features:

Length overall, Lbef [m]67,27
Maximum length of the modules together, Bmax fm]23,76
Lightship, delta0 [t]42,86
Maximum displacement, deltamax [t]72,2
Lightship draugth Tk [m]0,26
Maximal passeger capacity, n [fő]204
Capacity of port, number of boats, ships, n [db]15 t vízkiszorítású kishajó 1 db, ezen felül 18 db csónak, vagy kishajó
Main dimensions of ships, L [m]15
Main dimensions of ships, B [m]4,5
Main dimensions of ships, Tmax [m]1,2
Maximal allowable displacement, delta [t/egység]15

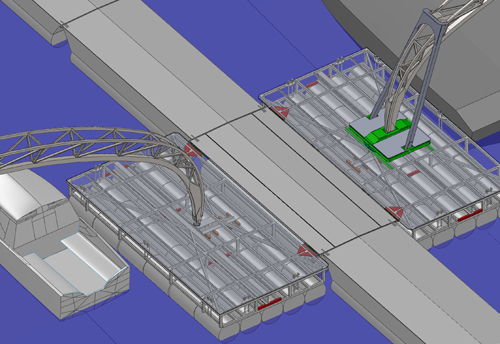

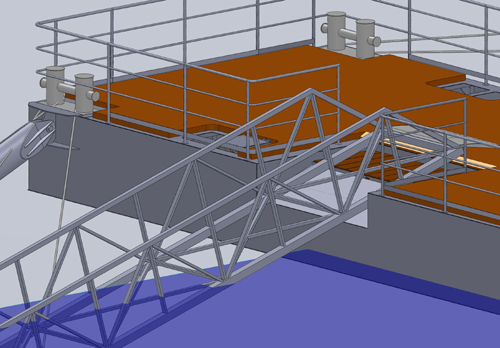

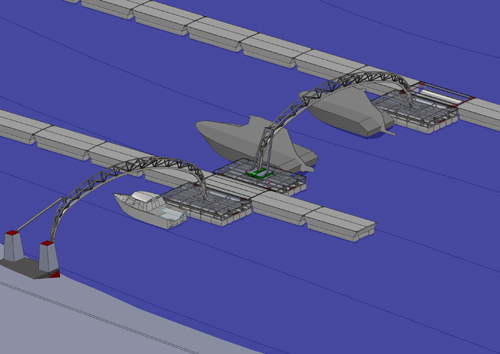

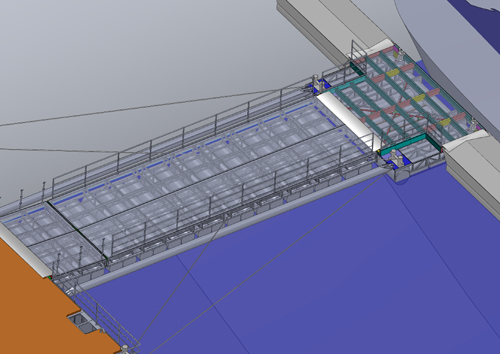

Boarding bridge parameters, effective width [m]1,3
Boarding bridge parameters, span of bridge [m]16
Boarding bridge parameters, design load [kN/m2]5
Shallow depth TG [m]0,26

Ship engineer tasks:

Technical description
General arranegment, general structure design
Drawings

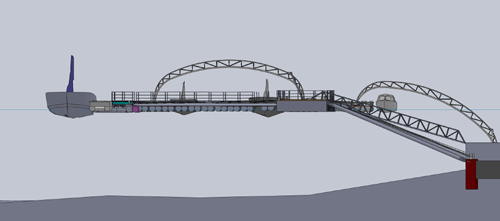

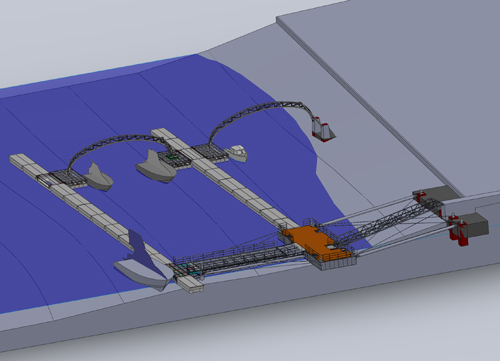

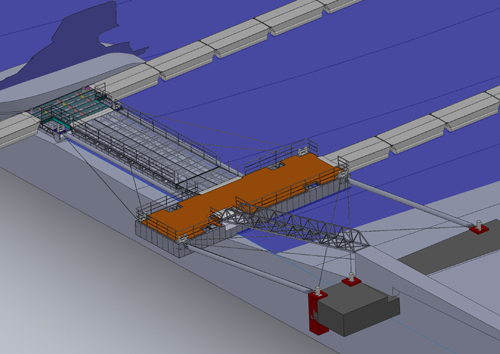

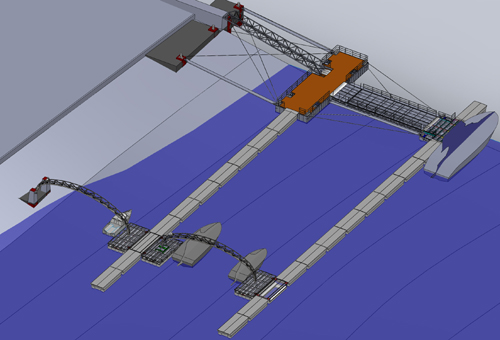

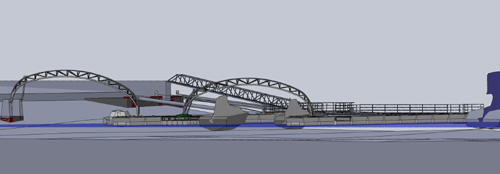

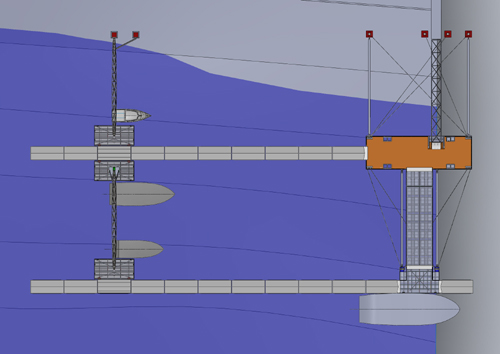

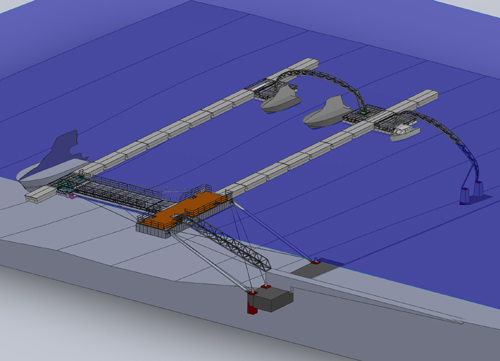

General arrangement of floating structures
Layout arrangement
General structural design

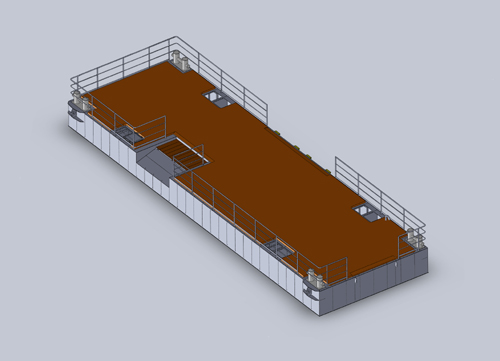

Pontoon design
Calculation of hydrostatics
Buoyancy and stabilty check
Subdivision and damage stability calculations
Strength analysis
Electrical load calculation, electric networks, emergency lighting, lightning protection
Domestic and fire water system
Arrangement of equipments and lifesaving means
Operational guide
Constructional documentation and instructions
